MDF6-6DP-3.5DS(23) _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	MDF6-6DP-3.5DS(23)
Manufacturer	Hirose Electric Co., Ltd.
Other Part Numbers	26-MDF6-6DP-3.5DS(23)-ND 26-MDF6-6DP-3.5DS(23) 547-0271-2-23

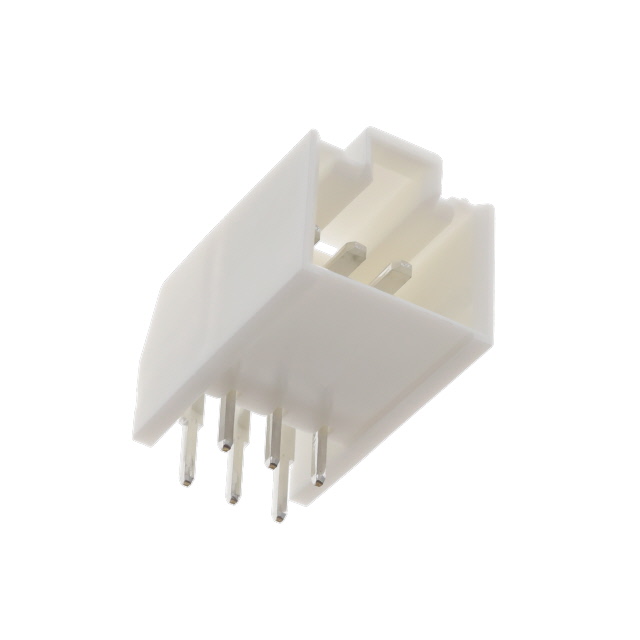

Description	CONN HEADER R/A 6POS 3.5MM
Detailed Description	Connector Header Through Hole, Right Angle 6 position 0.138" (3.50mm)
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Hirose Electric Co., Ltd.
Series		MDF6
Packaging		Bag
Part Status		Active
Connector Type		Header
Voltage Rating		300VAC/DC
Current Rating (Amps)		Varies by Wire Gauge
Mounting Type		Through Hole, Right Angle
Number of Positions		6
Number of Rows		2
Style		Board to Cable/Wire
Operating Temperature		-30°C ~ 85°C
Contact Type		Male Pin
Fastening Type		Latch Holder
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Brass
Insulation Color		White
Pitch - Mating		0.138" (3.50mm)
Contact Finish - Mating		Tin
Contact Finish Thickness - Mating		39.4µin (1.00µm)
Contact Finish - Post		Tin
Contact Finish Thickness - Post		39.4µin (1.00µm)
Contact Shape		Square
Contact Length - Post		0.138" (3.50mm)
Insulation Height		0.445" (11.30mm)
Shrouding		Shrouded - 4 Wall
Insulation Material		Polyamide (PA), Nylon
Row Spacing - Mating		0.197" (5.00mm)
Contact Length - Mating		0.220" (5.60mm)

RESOURCE TYPE		LINK
Datasheets		MDF6-6DP-3.5DS(23)

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
