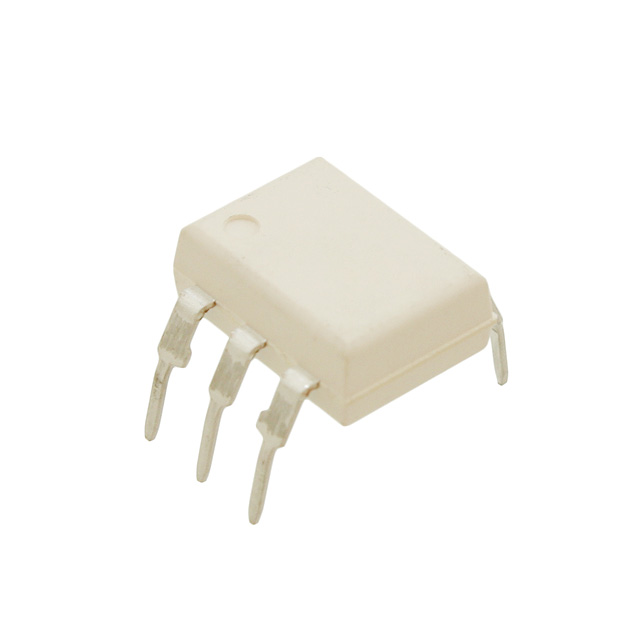

MCT5200300W _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	MCT5200300W
Manufacturer	Sanyo Semiconductor/onsemi
Other Part Numbers	MCT5200300W-ND MCT5200300W-NDR
Description	OPTOISO 5.3KV TRANS W/BASE 6DIP
Detailed Description	Optoisolator Transistor with Base Output 5300Vrms 1 Channel 6-DIP
Datasheet	Datasheet

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Sanyo Semiconductor/onsemi
Series
Packaging		Tube
Part Status		Obsolete
Package / Case		6-DIP (0.400", 10.16mm)
Output Type		Transistor with Base
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.25V
Input Type		DC
Current - Output / Channel		150mA
Voltage - Isolation		5300Vrms
Current Transfer Ratio (Min)		75% @ 10mA
Vce Saturation (Max)		400mV
Supplier Device Package		6-DIP
Voltage - Output (Max)		30V
Turn On / Turn Off Time (Typ)		1.6µs, 18µs
Rise / Fall Time (Typ)		1.3µs, 16µs
Number of Channels		1
Current - DC Forward (If) (Max)		50 mA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected

This product is no longer manufactured.
