MCP3221A5T-E/OT _ Analog to Digital Converters (ADC)_Data Acquisition_Integrated Circuits (ICs)

Part Number	MCP3221A5T-E/OT
Manufacturer	Roving Networks (Microchip Technology)
Other Part Numbers	MCP3221A5T-E/OTTR-ND MCP3221A5T-E/OTCT-ND MCP3221A5T-E/OTDKR-ND MCP3221A5T-E/OT-NDR MCP3221A5T-E/OT-ND MCP3221A5TEOT MCP3221A5T-E/OTTR MCP3221A5T-E/OTDKR MCP3221A5T-E/OTCT
Description	IC ADC 12BIT SAR SOT23-5
Detailed Description	12 Bit Analog to Digital Converter 1 Input 1 SAR SOT-23-5
Manufacturer Standard Lead Time	4 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Data Acquisition Analog to Digital Converters (ADC)
Manufacturer		Roving Networks (Microchip Technology)
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

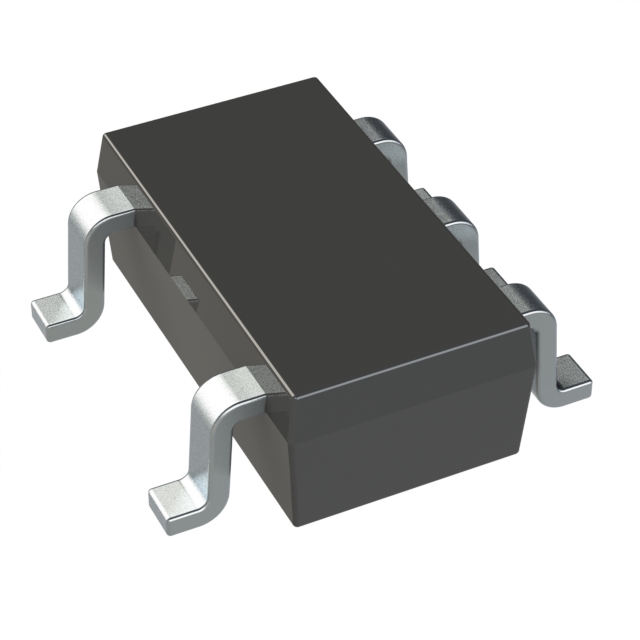

Package / Case		SC-74A, SOT-753
Mounting Type		Surface Mount
Number of Bits		12
Configuration		S/H-ADC
Data Interface		I2C
Reference Type		Supply
Operating Temperature		-40°C ~ 125°C
Voltage - Supply, Analog		2.7V ~ 5.5V
Voltage - Supply, Digital		2.7V ~ 5.5V
Sampling Rate (Per Second)		22.3k
Input Type		Single Ended
Number of Inputs		1
Supplier Device Package		SOT-23-5
Architecture		SAR
Ratio - S/H:ADC		1:1
Number of A/D Converters		1

RESOURCE TYPE		LINK
Datasheets		MCP3221A5T-E/OT
Datasheets		Microchip REACH
Datasheets		Microchip RoHS
Datasheets		MCP3221 02/Feb/2017
Datasheets		Multi Dev 28/Sep/2022
Datasheets		Label and Packing Changes 23/Sep/2015
Datasheets		Packing Changes 10/Oct/2016

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
