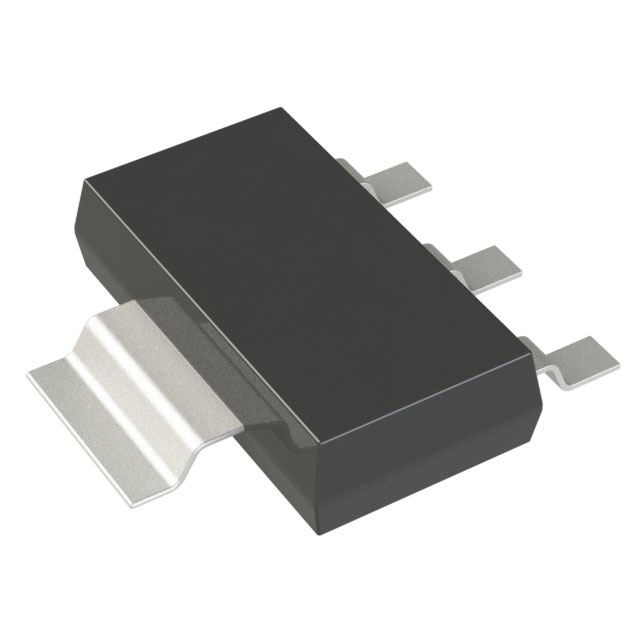

MCP1826ST-0802E/DB

MCP1826ST-0802E/DB

Part Number	MCP1826ST-0802E/DB
Manufacturer	Roving Networks (Microchip Technology)
Other Part Numbers	MCP1826ST-0802E/DBTR-ND MCP1826ST-0802E/DBTR
Description	IC REG LINEAR 0.8V 1A SOT223-3
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223-3
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		Roving Networks (Microchip Technology)
Series
Packaging		Tape & Reel (TR)
Part Status		Active
Package / Case		TO-261-4, TO-261AA
Output Type		Fixed
Mounting Type		Surface Mount
Current - Output		1A
Operating Temperature		-40°C ~ 125°C
Output Configuration		Positive
Current - Quiescent (Iq)		220 µA
Voltage - Input (Max)		6V
Number of Regulators		1
Supplier Device Package		SOT-223-3
Voltage - Output (Min/Fixed)		0.8V
PSRR		60dB (100Hz)
Voltage Dropout (Max)		0.4V @ 1A
Protection Features		Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MCP1826ST-0802E/DB
Datasheets		Microchip RoHS
Datasheets		Microchip REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
