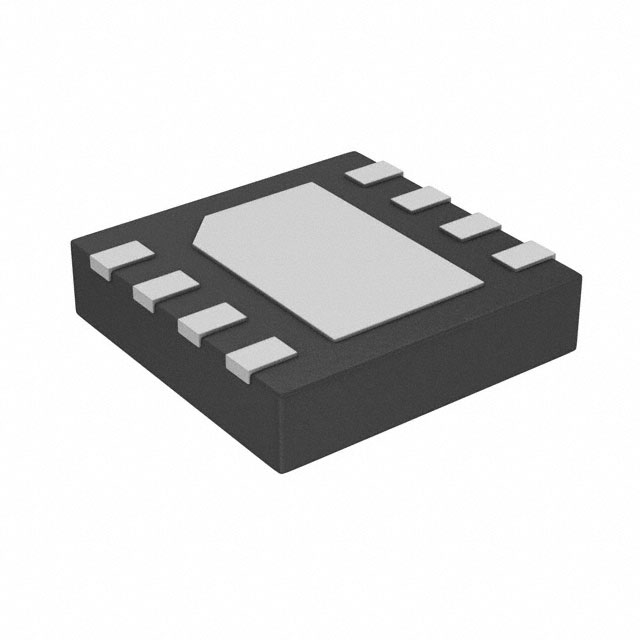

Part Number	MCP14700-E/MF
Manufacturer	Roving Networks (Microchip Technology)
Other Part Numbers	MCP14700-E/MF-ND MCP14700EMF
Description	IC GATE DRVR HALF-BRIDGE 8DFN
Detailed Description	Half-Bridge Gate Driver IC Non-Inverting 8-DFN (3x3)
Manufacturer Standard Lead Time	4 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Gate Drivers
Manufacturer		Roving Networks (Microchip Technology)
Series
Packaging		Tube
Part Status		Active
Package / Case		8-VDFN Exposed Pad
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 125°C (TJ)
Voltage - Supply		4.5V ~ 5.5V
Input Type		Non-Inverting
High Side Voltage - Max (Bootstrap)		36 V
Supplier Device Package		8-DFN (3x3)
Rise / Fall Time (Typ)		10ns, 10ns
Channel Type		Independent
Driven Configuration		Half-Bridge
Number of Drivers		2
Gate Type		N-Channel MOSFET
Current - Peak Output (Source, Sink)		2A, 2A
DigiKey Programmable		Not Verified

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Microchip RoHS
Datasheets		Microchip REACH
Datasheets		DFN-8L Qualification 21/Nov/2013

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
