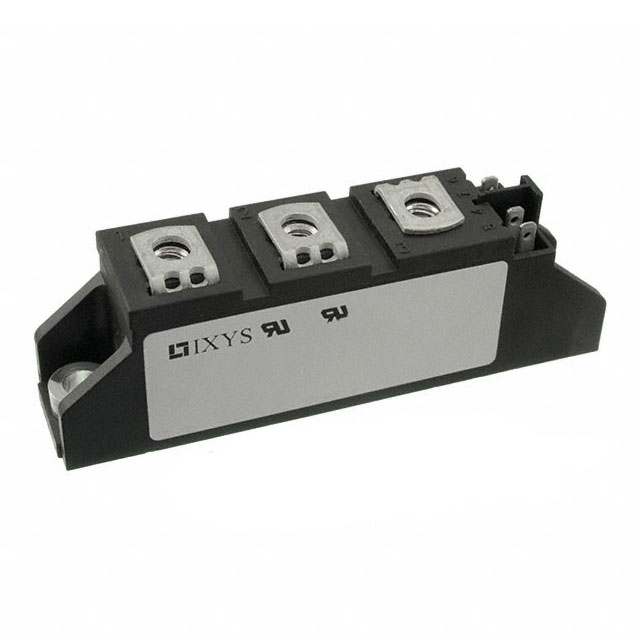

MCC44-12IO8B

MCC44-12IO8B

Part Number	MCC44-12IO8B
Manufacturer	Littelfuse / IXYS RF
Other Part Numbers	MCC44-12IO8B-ND
Description	MOD THYRISTOR DUAL 1200V TO240AA
Detailed Description	SCR Module 1.2 kV 80 A Series Connection - All SCRs Chassis Mount TO-240AA
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Thyristors SCRs - Modules
Manufacturer		Littelfuse / IXYS RF
Series
Packaging		Box
Part Status		Active
Package / Case		TO-240AA
Mounting Type		Chassis Mount
Operating Temperature		-40°C ~ 125°C (TJ)
Structure		Series Connection - All SCRs
Current - Hold (Ih) (Max)		200 mA
Current - Gate Trigger (Igt) (Max)		100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)		1150A, 1230A
Number of SCRs, Diodes		2 SCRs
Current - On State (It (AV)) (Max)		51 A
Voltage - Gate Trigger (Vgt) (Max)		1.5 V
Current - On State (It (RMS)) (Max)		80 A
Voltage - Off State		1.2 kV

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MCC44-12IO8B
Datasheets		SCR Module Selection Guide
Datasheets		Mult Devs Screws Attachment 30/Sep/2021

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8541.30.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
