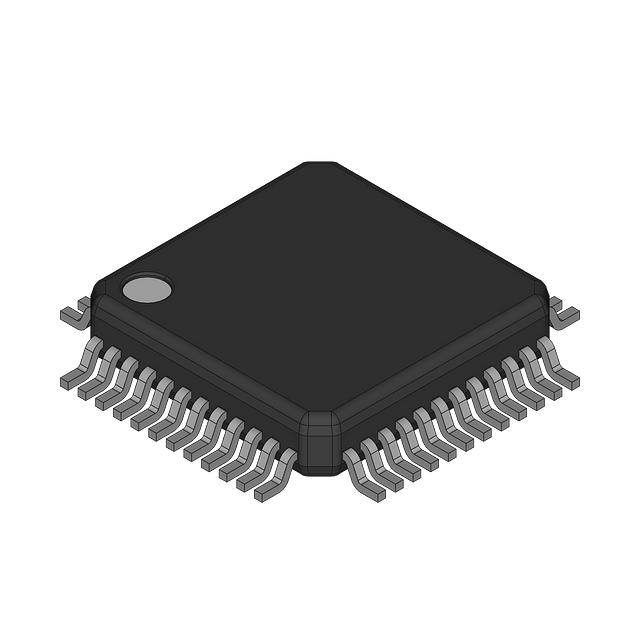

MC908GR48ACFJ _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	MC908GR48ACFJ
Manufacturer	Motorola
Other Part Numbers	2156-MC908GR48ACFJ-ND 2156-MC908GR48ACFJ FREMOTMC908GR48ACFJ
Description	8-BIT, FLASH, 68HC08 CPU, 8MHZ
Detailed Description	HC08 HC08 Microcontroller IC 8-Bit 8MHz 48KB (48K x 8) FLASH 32-LQFP (7x7)

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		Motorola
Series		HC08
Packaging		Bulk
Part Status		Active
Package / Case		32-LQFP
Mounting Type		Surface Mount
Speed		8MHz
Program Memory Size		48KB (48K x 8)
RAM Size		1.5K x 8
Operating Temperature		-40°C ~ 85°C (TA)
Oscillator Type		Internal
Program Memory Type		FLASH
Core Processor		HC08
Data Converters		A/D 24x8b SAR
Core Size		8-Bit
Voltage - Supply (Vcc/Vdd)		3V ~ 5.5V
Connectivity		SCI, SPI
Peripherals		LVD, POR, PWM
Supplier Device Package		32-LQFP (7x7)
Number of I/O		21
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Affected
RoHS Status		RoHS non-compliant
