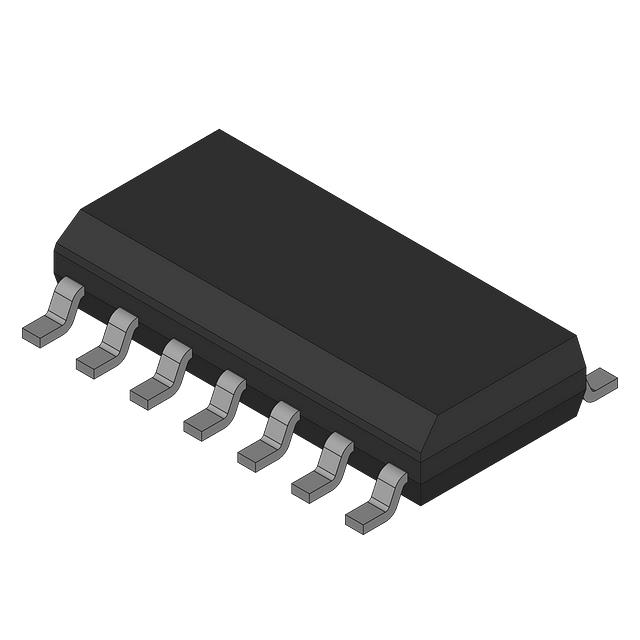

MC74F21D

MC74F21D

Part Number	MC74F21D
Manufacturer	Motorola
Other Part Numbers	2156-MC74F21D-ND ONSMOTMC74F21D 2156-MC74F21D
Description	IC GATE AND 2CH 4-INP 14SOIC
Detailed Description	AND Gate IC 2 Channel 14-SOIC

Product Attributes

Category		Integrated Circuits (ICs) Logic Gates and Inverters
Manufacturer		Motorola
Series
Packaging		Bulk
Part Status		Active
Package / Case		14-SOIC (0.154", 3.90mm Width)
Mounting Type		Surface Mount
Logic Type		AND Gate
Operating Temperature		0°C ~ 70°C
Voltage - Supply		4.5V ~ 5.5V
Current - Output High, Low		1mA, 20mA
Number of Inputs		4
Supplier Device Package		14-SOIC
Input Logic Level - High		2V
Input Logic Level - Low		0.8V
Max Propagation Delay @ V, Max CL		5.6ns @ 5V, 50pF
Number of Circuits		2
Current - Quiescent (Max)		6.4 mA
