MC68HC908LK24CFU _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	MC68HC908LK24CFU
Manufacturer	Motorola
Other Part Numbers	2156-MC68HC908LK24CFU-ND 2156-MC68HC908LK24CFU FREMOTMC68HC908LK24CFU
Description	IC MCU 8BIT 24KB FLASH 64QFP
Detailed Description	HC08 HC08 Microcontroller IC 8-Bit 8MHz 24KB (24K x 8) FLASH 64-QFP (14x14)

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		Motorola
Series		HC08
Packaging		Bulk
Part Status		Active

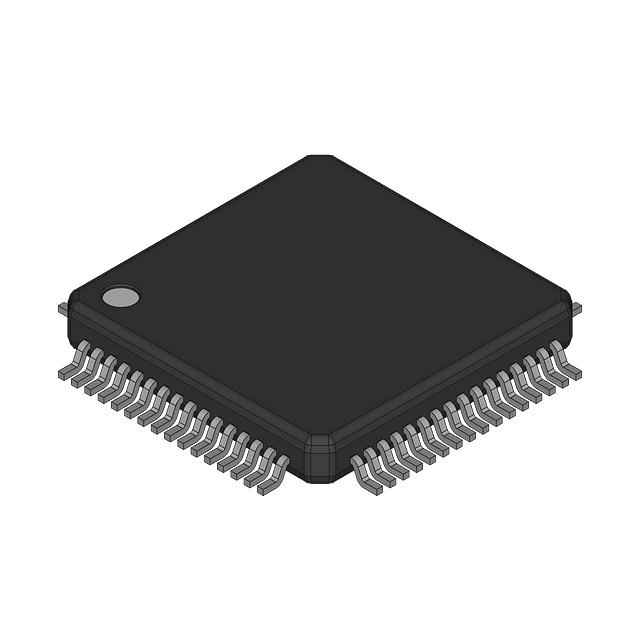

Package / Case		64-QFP
Mounting Type		Surface Mount
Speed		8MHz
Program Memory Size		24KB (24K x 8)
RAM Size		768 x 8
Operating Temperature		-40°C ~ 85°C (TA)
Oscillator Type		Internal
Program Memory Type		FLASH
Core Processor		HC08
Data Converters		A/D 6x10b
Core Size		8-Bit
Voltage - Supply (Vcc/Vdd)		3V ~ 5.5V
Connectivity		I2C, IRSCI, SPI
Peripherals		LCD, LVD, POR, PWM
Supplier Device Package		64-QFP (14x14)
Number of I/O		40
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		Vendor Undefined
RoHS Status		ROHS3 Compliant
