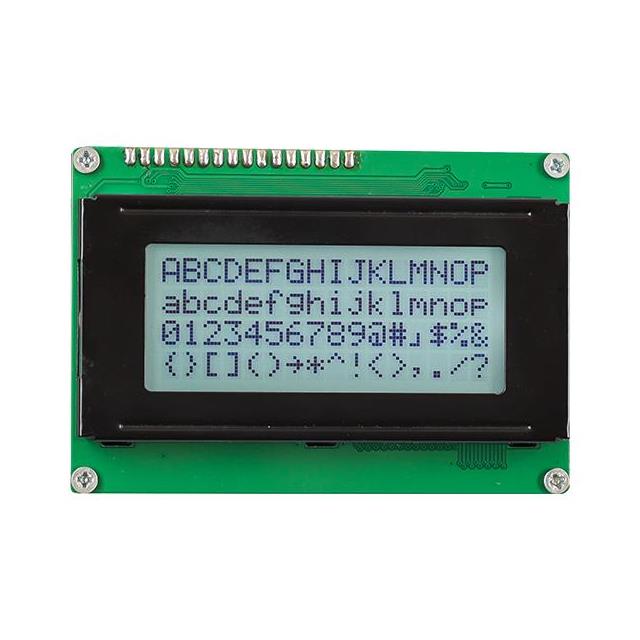

MC41605A6W-FPTLW-V2

MC41605A6W-FPTLW-V2

Part Number	MC41605A6W-FPTLW-V2
Manufacturer	Midas Displays
Other Part Numbers	3086-MC41605A6W-FPTLW-V2-ND 3086-MC41605A6W-FPTLW-V2
Description	4x16 character chip-on-board LCD
Detailed Description	Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - White 87.00mm x 60.00mm x 14.50mm
Datasheet	Datasheet

Product Attributes

Category		Optoelectronics LCD, OLED Character and Numeric
Manufacturer		Midas Displays
Series
Packaging		Tray
Part Status		Active
Display Type		STN - Super-Twisted Nematic
Display Mode		Transflective
Backlight		LED - White
Operating Temperature		-20°C ~ 70°C
Voltage - Supply		5V
Viewing Area		61.80mm L x 25.20mm W
Character Size		4.76mm H x 2.96mm W
Display Format		16 x 4
Character Format		5 x 8 Dots
Dot Size		0.04mm W x 0.04mm H
Controller Type		ST7066U
Outline L x W x H		87.00mm x 60.00mm x 14.50mm
Number of Characters		64

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MC41605A6W-FPTLW-V2

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8531.20.9500
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
