MC3116F

Part Number
MC3116F
Manufacturer Motorola
Other Part Numbers
2156-MC3116F-ND
MOTMOTMC3116F
2156-MC3116F
Description IC GATE NAND 1CH 8-INP 14CFLTPK
Detailed Description NAND Gate IC 1 Channel 14-CFlatPack

Product Attributes

Category
Manufacturer Motorola
Series
MC3100
Packaging
Bulk
Part Status Obsolete

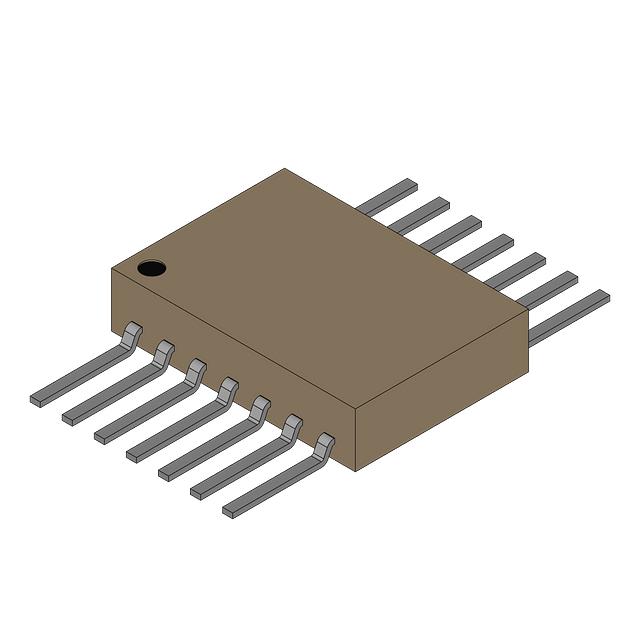

Package / Case 14-CFlatPack
Mounting Type Surface Mount
Logic Type NAND Gate
Operating Temperature -55°C ~ 125°C
Number of Inputs 8
Supplier Device Package 14-CFlatPack
Number of Circuits 1

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status Vendor Undefined
RoHS Status RoHS non-compliant

Obsolete

This product is no longer manufactured.
