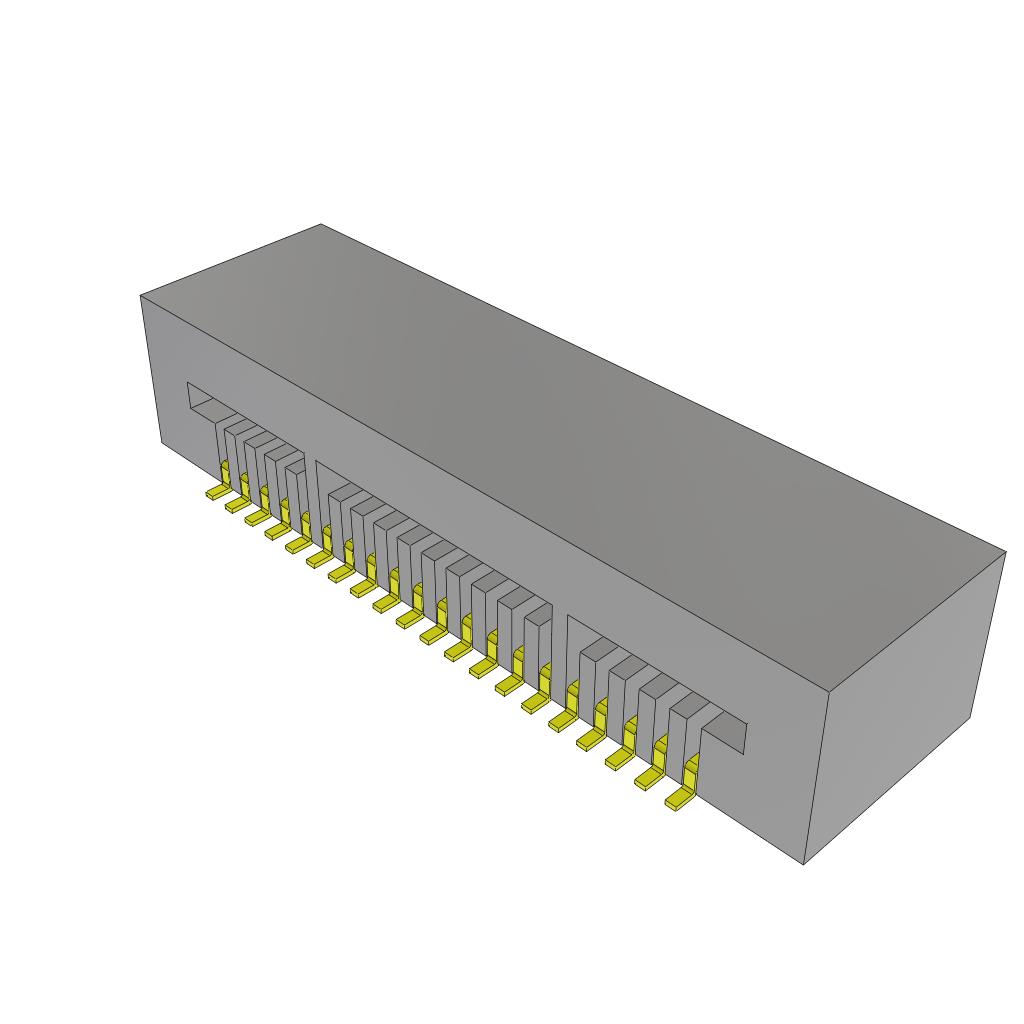

MB1-120-01-L-S-01-SL-N _ Edgeboard Connectors_Card Edge Connectors_Connectors, Interconnects

Part Number	MB1-120-01-L-S-01-SL-N
Manufacturer	Samtec, Inc.
Other Part Numbers	612-MB1-120-01-L-S-01-SL-N-ND 612-MB1-120-01-L-S-01-SL-N
Description	1.00 MM MINI EDGE CARD SOCKET WI
Detailed Description	20 Position Female Connector Non Specified - Single Edge Gold 0.039" (1.00mm) Black
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Card Edge Connectors Edgeboard Connectors
Manufacturer		Samtec, Inc.
Series		MB1
Packaging		Tube
Part Status		Active
Features		Board Guide, Card Guide
Gender		Female
Contact Finish		Gold
Color		Black
Mounting Type		Surface Mount, Right Angle
Number of Positions		20
Pitch		0.039" (1.00mm)
Operating Temperature		-55°C ~ 125°C
Read Out		Single
Contact Type		Loop Bellows
Card Type		Non Specified - Single Edge
Card Thickness		0.031" (0.79mm)
Termination		Solder
Contact Finish Thickness		10.0µin (0.25µm)
Material - Insulation		Liquid Crystal Polymer (LCP)
Contact Material		Beryllium Copper
Number of Rows		1
Termination Rows		1

RESOURCE TYPE		LINK
Datasheets		MB1-120-01-L-S-01-SL-N

ATTRIBUTE		DESCRIPTION
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
