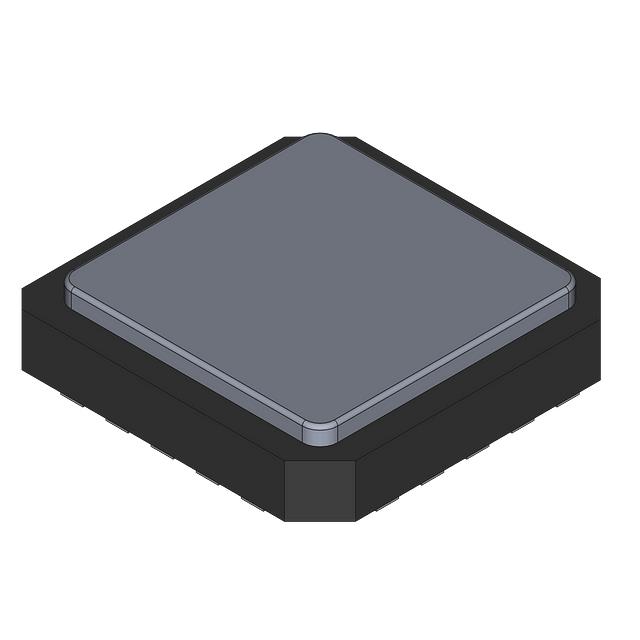

MAX9996ETP

MAX9996ETP

Part Number	MAX9996ETP
Manufacturer	Maxim Integrated / Analog Devices
Other Part Numbers	2156-MAX9996ETP-ND 2156-MAX9996ETP MAXMAXMAX9996ETP
Description	MAX9996 DOWNCONVERSION MIXER
Detailed Description	RF Mixer IC Cellular, DCS, EDGE, PCS, UMTS, WLL Down Converter 1.7GHz ~ 2.2GHz 20-TQFN (5x5)

Product Attributes

Category		RF and Wireless RF Mixers
Manufacturer		Maxim Integrated / Analog Devices
Series
Packaging		Bulk
Part Status		Active
Package / Case		20-WQFN Exposed Pad
Mounting Type		Surface Mount
Frequency		1.7GHz ~ 2.2GHz
RF Type		Cellular, DCS, EDGE, PCS, UMTS, WLL
Voltage - Supply		4.75V ~ 5.25V
Gain		8.3dB
Current - Supply		206mA
Secondary Attributes		Down Converter
Noise Figure		9.7dB
Number of Mixers		1
Supplier Device Package		20-TQFN (5x5)

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Affected
RoHS Status		RoHS non-compliant
