Part Number |
MAX9700DEUB+
|
---|---|
Manufacturer | Maxim Integrated / Analog Devices |
Other Part Numbers |
MAX9700DEUB+-ND
-4941-MAX9700DEUB+
|
Description | IC AMP CLASS D MONO 1.6W 10UMAX |
Detailed Description | Amplifier IC 1-Channel (Mono) Class D 10-uMAX/uSOP |
Manufacturer Standard Lead Time | 30 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Maxim Integrated / Analog Devices | |
Series | ||
Packaging |
Tube
|
|
Part Status | Active | |
Features | Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown | |

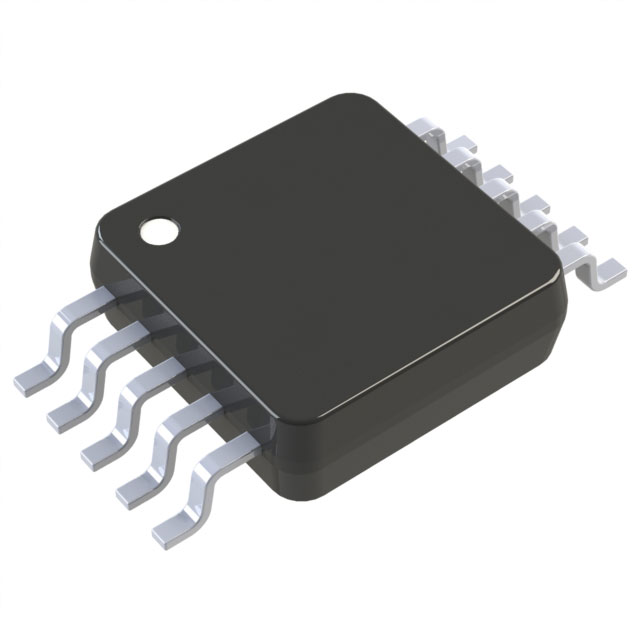

Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | |
Output Type | 1-Channel (Mono) | |
Mounting Type | Surface Mount | |
Type | Class D | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Voltage - Supply | 2.5V ~ 5.5V | |
Max Output Power x Channels @ Load | 1.6W x 1 @ 6Ohm | |
Supplier Device Package | 10-uMAX/uSOP |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | MAX9700DEUB+ | |
Datasheets | Introduction to Hearing Aids and Important Design Considerations | |
Datasheets | Important Considerations for Insulin Pump and Portable Medical Designs | |
Datasheets | Class D Amplifiers: Fundamentals of Operation and Recent Developments | |
Datasheets | Simple Circuit Limits Amplifier's Output | |
Datasheets | Maxim Integrated RoHS Cert | |
Datasheets | Maxim Integrated REACH | |
Datasheets | Part Numbering System |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8542.33.0001 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
