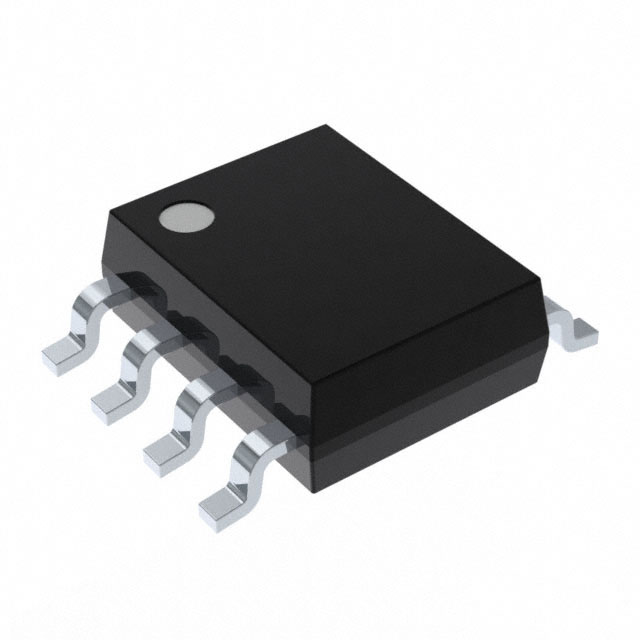

MAX941CSA+

MAX941CSA+

Part Number	MAX941CSA+
Manufacturer	Maxim Integrated / Analog Devices
Other Part Numbers	MAX941CSA+-ND -4941-MAX941CSA+
Description	IC COMPARATOR 1 W/LATCH 8SOIC
Detailed Description	Comparator with Latch, Shutdown CMOS, Push-Pull, TTL 8-SOIC
Manufacturer Standard Lead Time	36 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Linear Comparators
Manufacturer		Maxim Integrated / Analog Devices
Series
Packaging		Tube
Part Status		Active
Package / Case		8-SOIC (0.154", 3.90mm Width)
Output Type		CMOS, Push-Pull, TTL
Mounting Type		Surface Mount
Number of Elements		1
Type		with Latch, Shutdown
Operating Temperature		0°C ~ 70°C
Voltage - Supply, Single/Dual (±)		2.7V ~ 5.5V
Supplier Device Package		8-SOIC
Propagation Delay (Max)		80ns
Current - Quiescent (Max)		700µA
Voltage - Input Offset (Max)		2mV @ 5.5V
Current - Input Bias (Max)		0.15µA @ 5.5V
CMRR, PSRR (Typ)		81.94dB CMRR, 81.94dB PSRR

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MAX941CSA+
Datasheets		Comparator/DAC Combinations Solve Data-Acquisition Problems
Datasheets		Maxim Integrated RoHS Cert
Datasheets		Maxim Integrated REACH
Datasheets		Part Numbering System

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 48

Can ship immediately.
