Part Number |
MAX932CSA
|
---|---|
Manufacturer | Maxim Integrated / Analog Devices |
Other Part Numbers |
MAX932CSA-ND
MAXMAXMAX932CSA
2156-MAX932CSA-MA
|
Description | IC COMPARATOR 2 W/VOLT REF 8SOIC |
Detailed Description | Comparator with Voltage Reference CMOS, TTL 8-SOIC |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Maxim Integrated / Analog Devices | |
Series | ||
Packaging |
Tube
|
|
Part Status | Obsolete | |

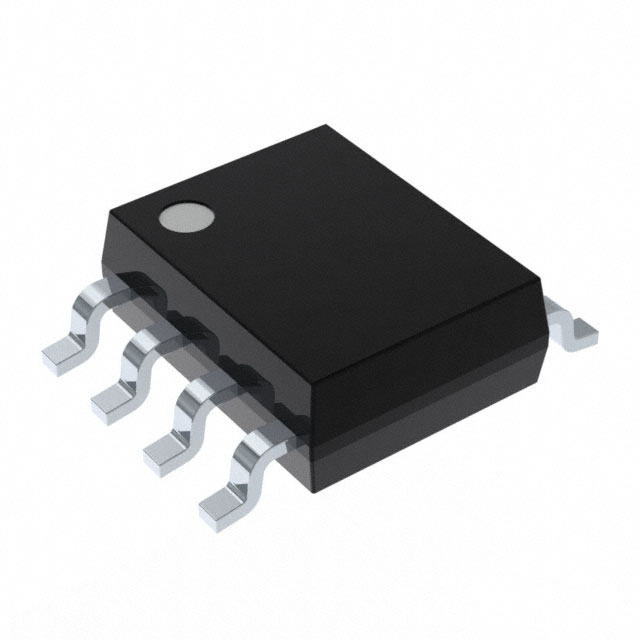

Package / Case | 8-SOIC (0.154", 3.90mm Width) | |
Output Type | CMOS, TTL | |
Mounting Type | Surface Mount | |
Number of Elements | 2 | |
Type | with Voltage Reference | |
Operating Temperature | 0°C ~ 70°C | |
Voltage - Supply, Single/Dual (±) | 2.5V ~ 11V, ±1.25V ~ 5.5V | |
Supplier Device Package | 8-SOIC | |
Propagation Delay (Max) | 12µs | |
Current - Quiescent (Max) | 6µA | |
Voltage - Input Offset (Max) | 10mV @ 5V | |
Current - Output (Typ) | 0.015mA @ 5V | |
CMRR, PSRR (Typ) | 80dB CMRR, 80dB PSRR | |
Hysteresis | 50mV |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | MAX932CSA | |
Datasheets | Maxim Integrated RoHS Cert | |
Datasheets | Maxim Integrated REACH | |
Datasheets | EOL 15/Jan/2016 | |
Datasheets | Part Numbering System |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8542.39.0001 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | RoHS non-compliant |
