MAX6966AEE+T

MAX6966AEE+T

Part Number	MAX6966AEE+T
Manufacturer	Maxim Integrated / Analog Devices
Other Part Numbers	175-MAX6966AEE+TTR-ND 175-MAX6966AEE+TCT-ND 175-MAX6966AEE+TDKR-ND 175-MAX6966AEE+TCT 175-MAX6966AEE+TTR-ND 175-MAX6966AEE+TDKR 505-MAX6966AEE+TTR-ND MAX6966AEE+T-ND 175-MAX6966AEE+TTR 505-MAX6966AEE+TTR
Description	IC LED DRIVER LINEAR 20MA 16QSOP
Detailed Description	LED Driver IC 10 Output Linear Dimming 20mA 16-QSOP
Manufacturer Standard Lead Time	21 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) LED Drivers
Manufacturer		Maxim Integrated / Analog Devices
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

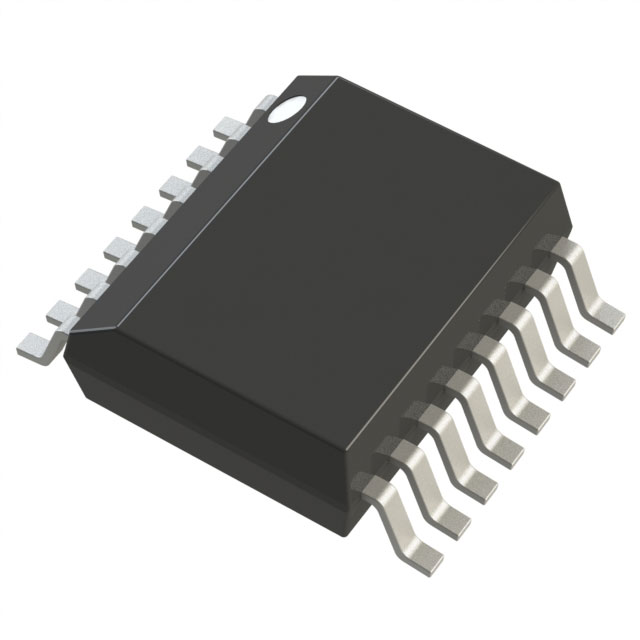

Package / Case		16-SSOP (0.154", 3.90mm Width)
Voltage - Output		7V
Mounting Type		Surface Mount
Number of Outputs		10
Type		Linear
Operating Temperature		-40°C ~ 125°C (TA)
Applications		Backlight
Current - Output / Channel		20mA
Internal Switch(s)		Yes
Supplier Device Package		16-QSOP
Voltage - Supply (Min)		2.25V
Voltage - Supply (Max)		3.6V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MAX6966AEE+T
Datasheets		Port Expanders for Flip-Cell Phones Save Cost and Space
Datasheets		Driving LEDs with Constant Current Port Expander Outputs
Datasheets		LEDs Are Still Popular (and Improving) after All These Years
Datasheets		Using Maxim SPI-compatible Display Drivers with other SPI Peripherals
Datasheets		Maxim Integrated RoHS Cert
Datasheets		Maxim Integrated REACH
Datasheets		Part Numbering System

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1297

Can ship immediately.
