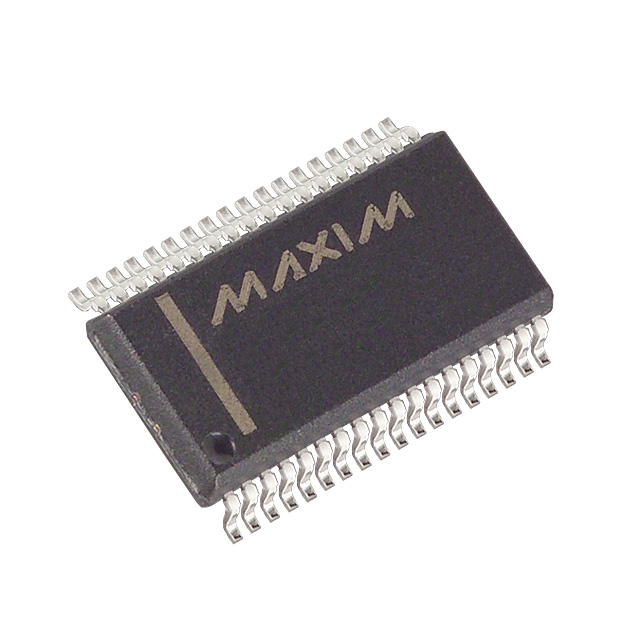

Part Number |
MAX6957AAX+
|
---|---|
Manufacturer | Maxim Integrated / Analog Devices |
Other Part Numbers |
MAX6957AAX+-ND
-4941-MAX6957AAX+
|
Description | IC DRVR 7/16/20 SEGMENT 36SSOP |
Detailed Description | LED Driver 36-SSOP |
Manufacturer Standard Lead Time | 18 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Maxim Integrated / Analog Devices | |
Series | ||
Packaging |
Tube
|
|
Part Status | Active | |
Package / Case | 36-BSOP (0.295", 7.50mm Width) | |
Display Type | LED | |
Mounting Type | Surface Mount | |
Interface | 4-Wire Serial | |
Configuration | 7, 16, 20 Segment | |
Operating Temperature | -40°C ~ 125°C | |
Voltage - Supply | 2.5V ~ 5.5V | |
Supplier Device Package | 36-SSOP | |
Current - Supply | 180 µA |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | MAX6957AAX+ | |
Datasheets | MAX6956 Programming Guide | |
Datasheets | Driving LEDs with Constant Current Port Expander Outputs | |
Datasheets | LEDs Are Still Popular (and Improving) after All These Years | |
Datasheets | Using Maxim SPI-compatible Display Drivers with other SPI Peripherals | |
Datasheets | Maxim Integrated RoHS Cert | |
Datasheets | Maxim Integrated REACH | |
Datasheets | Part Numbering System |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8542.39.0001 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
