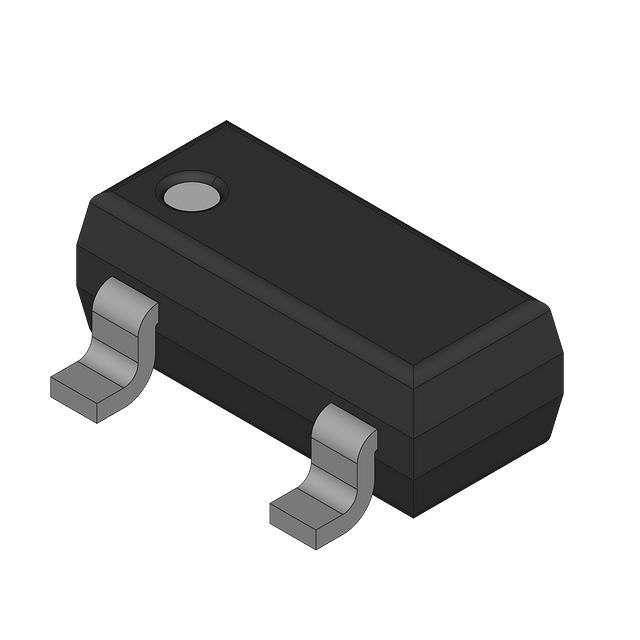

MAX5491SC03200-T

MAX5491SC03200-T

Part Number	MAX5491SC03200-T
Manufacturer	Maxim Integrated / Analog Devices
Other Part Numbers	2156-MAX5491SC03200-T-ND MAXMAXMAX5491SC03200-T 2156-MAX5491SC03200-T
Description	MATCHED RESISTOR-DIVIDER
Detailed Description	Ohm 87.5mW Power Per Element Voltage Divider 2 Resistor Network/Array ±35ppm/°C TO-236-3, SC-59, SOT-23-3

Product Attributes

Category		Resistors Resistor Networks, Arrays
Manufacturer		Maxim Integrated / Analog Devices
Series		MAX5491
Packaging		Bulk
Part Status		Active
Power Per Element		87.5mW
Circuit Type		Voltage Divider
Number of Pins		3
Package / Case		TO-236-3, SC-59, SOT-23-3
Temperature Coefficient		±35ppm/°C
Size / Dimension		0.115" L x 0.051" W (2.92mm x 1.30mm)
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 85°C
Supplier Device Package		SOT-23-3
Height - Seated (Max)		0.044" (1.12mm)
Resistor Matching Ratio		±0.1%
Resistor-Ratio-Drift		±2ppm/°C
Number of Resistors		2

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8533.21.0020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		RoHS non-compliant
