MAX4604CPE _ Analog Switches, Multiplexers, Demultiplexers_Interface_Integrated Circuits (ICs)

Part Number	MAX4604CPE
Manufacturer	Linear Technology (Analog Devices, Inc.)
Other Part Numbers	MAX4604CPE-ND MAXMAXMAX4604CPE 2156-MAX4604CPE-MA
Description	IC SWITCH SPST-NC X 4 4OHM 16DIP
Detailed Description	4 Circuit IC Switch 1:1 4Ohm 16-PDIP
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Interface Analog Switches, Multiplexers, Demultiplexers
Manufacturer		Linear Technology (Analog Devices, Inc.)
Series
Packaging		Tube
Part Status		Obsolete

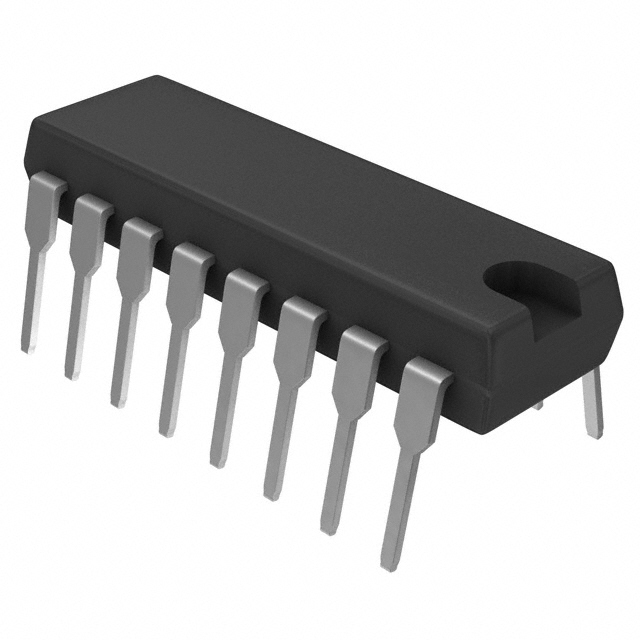

Package / Case		16-DIP (0.300", 7.62mm)
Mounting Type		Through Hole
Operating Temperature		0°C ~ 70°C (TA)
On-State Resistance (Max)		4Ohm
Supplier Device Package		16-PDIP
Voltage - Supply, Single (V+)		4.5V ~ 36V
Voltage - Supply, Dual (V±)		±4.5V ~ 20V
Charge Injection		225pC
Crosstalk		-60dB @ 1MHz
Switch Circuit		SPST - NC
Multiplexer/Demultiplexer Circuit		1:1
Channel-to-Channel Matching (ΔRon)		200mOhm
Switch Time (Ton, Toff) (Max)		120ns, 130ns
Channel Capacitance (CS(off), CD(off))		34pF, 34pF
Current - Leakage (IS(off)) (Max)		500pA
Number of Circuits		4

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant

This product is no longer manufactured.
