MAX4556ESE

Part Number
MAX4556ESE
Manufacturer Linear Technology (Analog Devices, Inc.)
Other Part Numbers
MAX4556ESE-ND
Description IC SWITCH TRIPLE SPDT 16SOIC
Detailed Description Force Sense Switch IC 3 Channel 16-SOIC
Datasheet Datasheet

Product Attributes

Category
Manufacturer Linear Technology (Analog Devices, Inc.)
Series
Packaging
Tube
Part Status Obsolete
Features Break-Before-Make

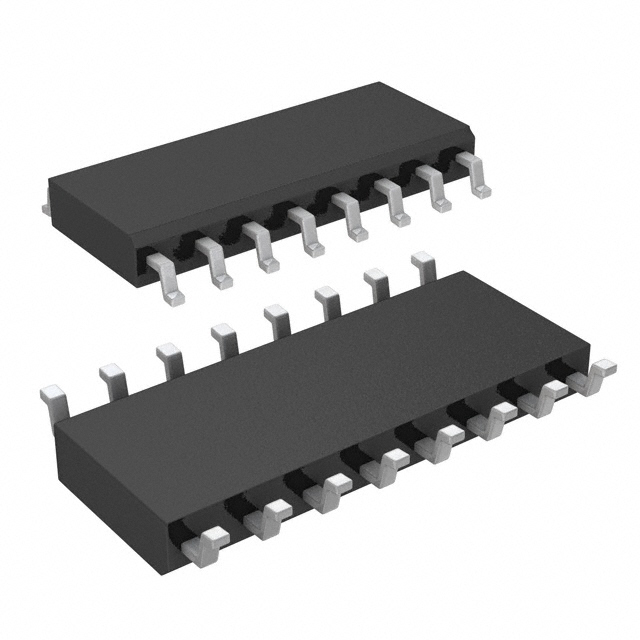

Package / Case 16-SOIC (0.154", 3.90mm Width)
Mounting Type Surface Mount
Operating Temperature -40°C ~ 85°C (TA)
Applications Force Sense
On-State Resistance (Max) 6Ohm
Supplier Device Package 16-SOIC
Voltage - Supply, Single (V+) 9V ~ 40V
Voltage - Supply, Dual (V±) ±4.5V ~ 20V
Switch Circuit SPDT
Multiplexer/Demultiplexer Circuit 2:1
Number of Channels 3

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS non-compliant

Obsolete

This product is no longer manufactured.
