MAX4543EUA _ Analog Switches, Multiplexers, Demultiplexers_Interface_Integrated Circuits (ICs)

Part Number	MAX4543EUA
Manufacturer	Linear Technology (Analog Devices, Inc.)
Other Part Numbers	MAX4543EUA-ND 2156-MAX4543EUA-MA MAXMAXMAX4543EUA
Description	IC SW SPST-NO/NCX2 60OHM 8UMAX
Detailed Description	2 Circuit IC Switch 1:1 60Ohm 8-uMAX/uSOP
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Interface Analog Switches, Multiplexers, Demultiplexers
Manufacturer		Linear Technology (Analog Devices, Inc.)
Series
Packaging		Tube
Part Status		Obsolete

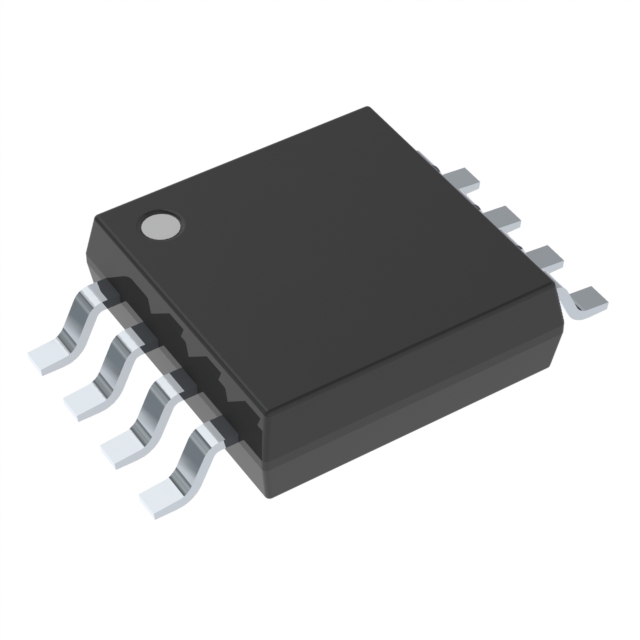

Package / Case		8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 85°C (TA)
On-State Resistance (Max)		60Ohm
Supplier Device Package		8-uMAX/uSOP
Voltage - Supply, Single (V+)		2.7V ~ 12V
Charge Injection		1pC
Crosstalk		-90dB @ 1MHz
Switch Circuit		SPST - NO/NC
Multiplexer/Demultiplexer Circuit		1:1
Channel-to-Channel Matching (ΔRon)		800mOhm
Switch Time (Ton, Toff) (Max)		100ns, 75ns
Channel Capacitance (CS(off), CD(off))		8pF, 8pF
Current - Leakage (IS(off)) (Max)		100pA
Number of Circuits		2

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant

This product is no longer manufactured.
