Part Number |
MAX3872ETJ+
|
---|---|
Manufacturer | Maxim Integrated / Analog Devices |
Other Part Numbers |
MAX3872ETJ+-ND
|
Description | IC CLK DATA REC SDH 2.67GHZ |
Detailed Description | Ethernet, SONET/SDH Clock and Data Recovery (CDR), Multiplexer IC 2.67GHz 1 Output 32-TQFN (5x5) |
Manufacturer Standard Lead Time | 43 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Maxim Integrated / Analog Devices | |
Series | ||
Packaging |
Tube
|
|
Part Status | Active | |

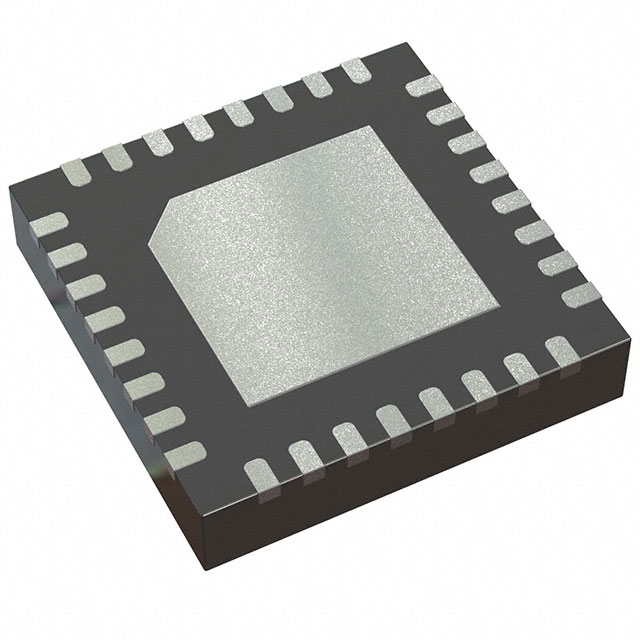

Package / Case | 32-WFQFN Exposed Pad | |
Mounting Type | Surface Mount | |
Output | CML | |
Frequency - Max | 2.67GHz | |
Input | CML | |
Operating Temperature | -40°C ~ 85°C | |
Voltage - Supply | 3V ~ 3.6V | |
Main Purpose | Ethernet, SONET/SDH | |
Ratio - Input:Output | 1:2 | |
Differential - Input:Output | Yes/Yes | |
Supplier Device Package | 32-TQFN (5x5) | |
PLL | Yes | |
Number of Circuits | 1 | |
DigiKey Programmable | Not Verified |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | HFTA-14.0 Design Challenges of GPON FEC Receivers | |
Datasheets | MAX3872: Choosing an Optimal Filter Capacitor for the MAX3872 Multi-Rate CDR | |
Datasheets | Maxim Integrated RoHS Cert | |
Datasheets | Maxim Integrated REACH | |
Datasheets | Part Numbering System |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8542.39.0001 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
