MAX355EWE _ Analog Switches, Multiplexers, Demultiplexers_Interface_Integrated Circuits (ICs)

Part Number	MAX355EWE
Manufacturer	Linear Technology (Analog Devices, Inc.)
Other Part Numbers	MAX355EWE-ND
Description	IC SWITCH SP4T X 2 350OHM 16SOIC
Detailed Description	2 Circuit IC Switch 4:1 350Ohm 16-SOIC
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Interface Analog Switches, Multiplexers, Demultiplexers
Manufacturer		Linear Technology (Analog Devices, Inc.)
Series
Packaging		Tube
Part Status		Obsolete

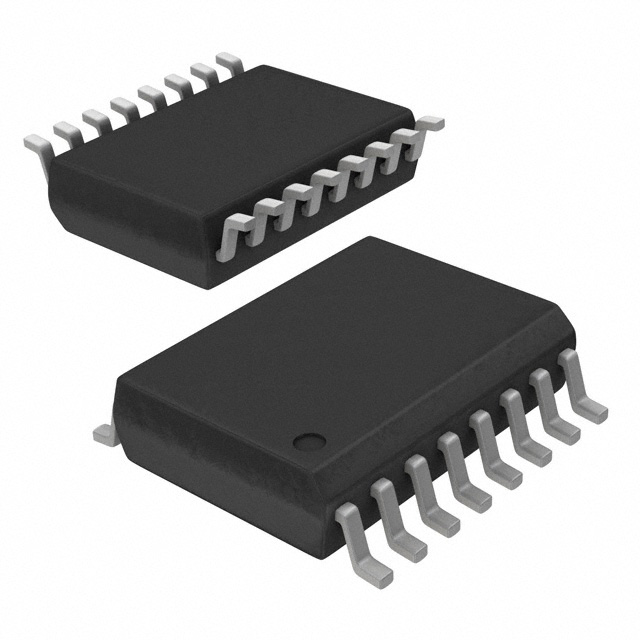

Package / Case		16-SOIC (0.295", 7.50mm Width)
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 85°C (TA)
On-State Resistance (Max)		350Ohm
Supplier Device Package		16-SOIC
Voltage - Supply, Single (V+)		4.5V ~ 36V
Voltage - Supply, Dual (V±)		±4.5V ~ 18V
Charge Injection		80pC
Crosstalk		-92dB @ 100kHz
Switch Circuit		SP4T
Multiplexer/Demultiplexer Circuit		4:1
Channel-to-Channel Matching (ΔRon)		7Ohm
Switch Time (Ton, Toff) (Max)		250ns, 200ns
Channel Capacitance (CS(off), CD(off))		1.6pF, 5pF
Current - Leakage (IS(off)) (Max)		500pA
Number of Circuits		2

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant

This product is no longer manufactured.
