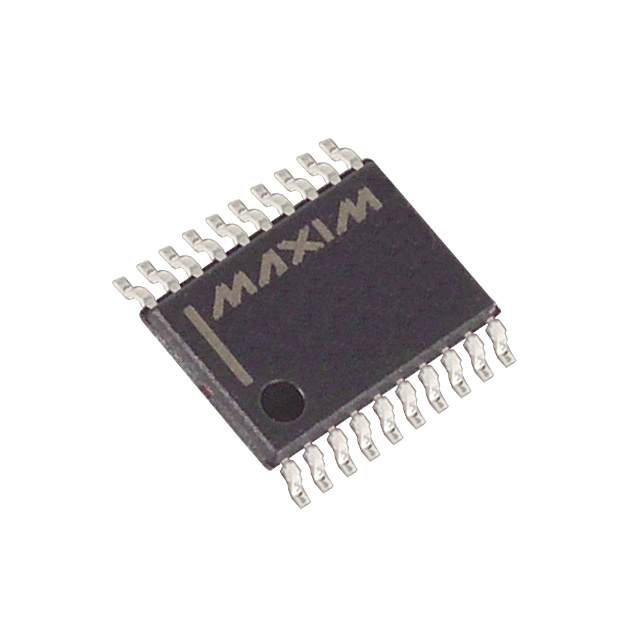

MAX3232ECUP+T

MAX3232ECUP+T

Part Number	MAX3232ECUP+T
Manufacturer	Maxim Integrated / Analog Devices
Other Part Numbers	175-MAX3232ECUP+TTR-ND 175-MAX3232ECUP+TCT-ND 175-MAX3232ECUP+TDKR-ND 175-MAX3232ECUP+TTR 175-MAX3232ECUP+TDKR 175-MAX3232ECUP+TCT MAX3232ECUP+T-ND 505-MAX3232ECUP+TTR-ND 175-MAX3232ECUP+TTR-ND 505-MAX3232ECUP+TTR
Description	IC TRANSCEIVER FULL 2/2 20TSSOP
Detailed Description	2/2 Transceiver Full RS232 20-TSSOP
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Interface Drivers, Receivers, Transceivers
Manufacturer		Maxim Integrated / Analog Devices
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		20-TSSOP (0.173", 4.40mm Width)
Mounting Type		Surface Mount
Type		Transceiver
Operating Temperature		0°C ~ 70°C
Voltage - Supply		3V ~ 5.5V
Number of Drivers/Receivers		2/2
Data Rate		1Mbps
Protocol		RS232
Supplier Device Package		20-TSSOP
Receiver Hysteresis		500 mV
Duplex		Full

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MAX3232ECUP+T
Datasheets		How Continuous Positive Airway Pressure (CPAP) Respiratory Ventilation Systems Function
Datasheets		The Evolution of the RS-232 Transceiver
Datasheets		Analog ICs for Low Voltage Systems
Datasheets		IrDA and RS-232: A Match Made in Silicon
Datasheets		Maxim Integrated RoHS Cert
Datasheets		Maxim Integrated REACH
Datasheets		Red Phosphorous Certificate
Datasheets		Part Numbering System

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1875

Can ship immediately.
