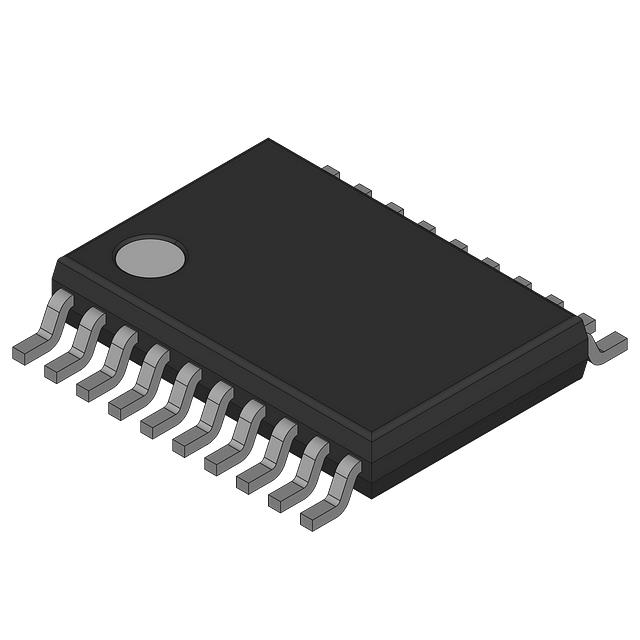

MAX2684EUE-T

MAX2684EUE-T

Part Number	MAX2684EUE-T
Manufacturer	Maxim Integrated / Analog Devices
Other Part Numbers	2156-MAX2684EUE-T-ND MAXMAXMAX2684EUE-T 2156-MAX2684EUE-T
Description	MIXER WITH SELECTABLE DOUBLER
Detailed Description	RF Mixer IC General Purpose Down Converter 3.4GHz ~ 3.8GHz 16-TSSOP-EP

Product Attributes

Category		RF and Wireless RF Mixers
Manufacturer		Maxim Integrated / Analog Devices
Series
Packaging		Bulk
Part Status		Active
Package / Case		16-TSSOP (0.173", 4.40mm Width) Exposed Pad
Mounting Type		Surface Mount
Frequency		3.4GHz ~ 3.8GHz
RF Type		General Purpose
Voltage - Supply		2.7V ~ 5.5V
Gain		6.7dB
Current - Supply		55mA
Secondary Attributes		Down Converter
Noise Figure		13.6dB
Number of Mixers		1
Supplier Device Package		16-TSSOP-EP

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Affected
RoHS Status		RoHS non-compliant
