MAX25014ATG/V+ _ LED Drivers_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	MAX25014ATG/V+
Manufacturer	Maxim Integrated / Analog Devices
Other Part Numbers	505-MAX25014ATG/V+-ND 175-MAX25014ATG/V+ 505-MAX25014ATG/V+ -4941-MAX25014ATG/V+ 175-MAX25014ATG/V+-ND
Description	IC LED DRV CTRL PWM 150MA 24TQFN
Detailed Description	LED Driver IC 4 Output DC DC Controller Step-Up (Boost) PWM Dimming 150mA 24-TQFN (4x4)
Manufacturer Standard Lead Time	27 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) LED Drivers
Manufacturer		Maxim Integrated / Analog Devices
Series
Packaging		Tube
Part Status		Active

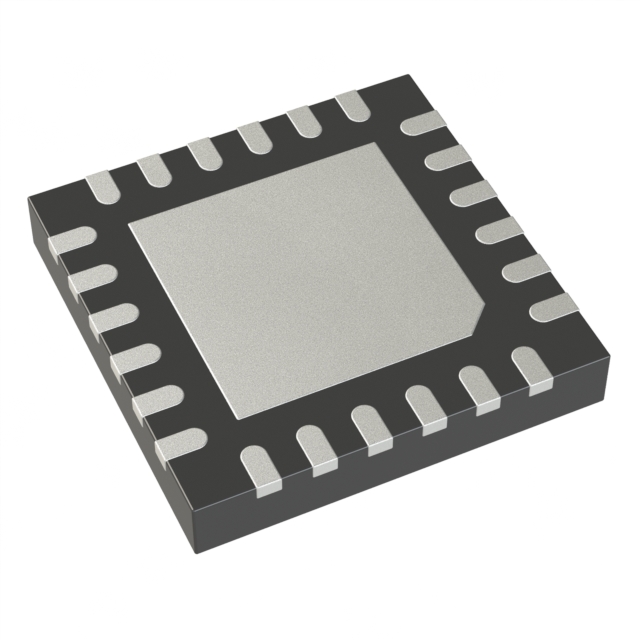

Package / Case		24-WFQFN Exposed Pad
Voltage - Output		5V
Mounting Type		Surface Mount
Number of Outputs		4
Frequency		400kHz ~ 2.2MHz
Type		DC DC Controller
Operating Temperature		-40°C ~ 125°C (TA)
Applications		Backlight
Current - Output / Channel		150mA
Internal Switch(s)		Yes
Topology		Step-Up (Boost)
Supplier Device Package		24-TQFN (4x4)
Dimming		PWM
Voltage - Supply (Min)		2.5V
Voltage - Supply (Max)		36V
Grade		Automotive
Qualification		AEC-Q100

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
