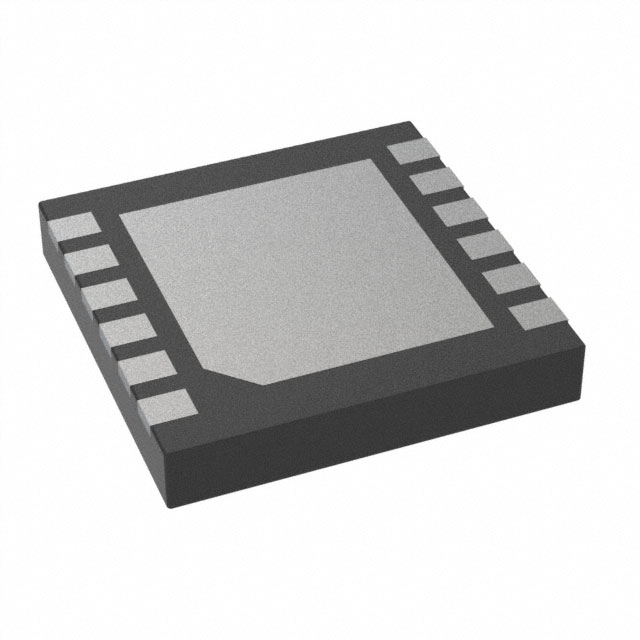

MAX22202ATC+

Part Number
MAX22202ATC+
Manufacturer Maxim Integrated / Analog Devices
Other Part Numbers
505-MAX22202ATC+-ND
175-MAX22202ATC+
175-MAX22202ATC+-ND
505-MAX22202ATC+
Description 36V DC MOTOR DRIVER CURRENT SENS
Detailed Description Bipolar Motor Driver NMOS On/Off 12-TDFN-EP (3x3)
Manufacturer Standard Lead Time 19 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Maxim Integrated / Analog Devices
Series
Packaging
Tray
Part Status Active
Package / Case 12-WFDFN Exposed Pad
Mounting Type Surface Mount, Wettable Flank
Function Driver - Fully Integrated, Control and Power Stage
Current - Output 3.5A
Interface On/Off
Operating Temperature -40°C ~ 125°C (TA)
Output Configuration Half Bridge (2)
Voltage - Supply 3V ~ 36V
Applications DC Motors, General Purpose, Stepper Motors
Technology NMOS
Supplier Device Package 12-TDFN-EP (3x3)
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC

Documents & Media

RESOURCE TYPE LINK
Datasheets MAX22202ATC+

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 781

Can ship immediately.
PACKAGING QUANTITY UNIT PRICE EXT PRICE
