MAX2051ETP+

MAX2051ETP+

Part Number	MAX2051ETP+
Manufacturer	Maxim Integrated / Analog Devices
Other Part Numbers	MAX2051ETP+-ND -4941-MAX2051ETP+
Description	IC MIXER 850MHZ-1.55GHZ 20TQFN
Detailed Description	RF Mixer IC iDEN, WiMAX, WLL Up/Down Converter 850MHz ~ 1.55GHz 20-TQFN (5x5)
Manufacturer Standard Lead Time	38 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Mixers
Manufacturer		Maxim Integrated / Analog Devices
Series
Packaging		Tube
Part Status		Active

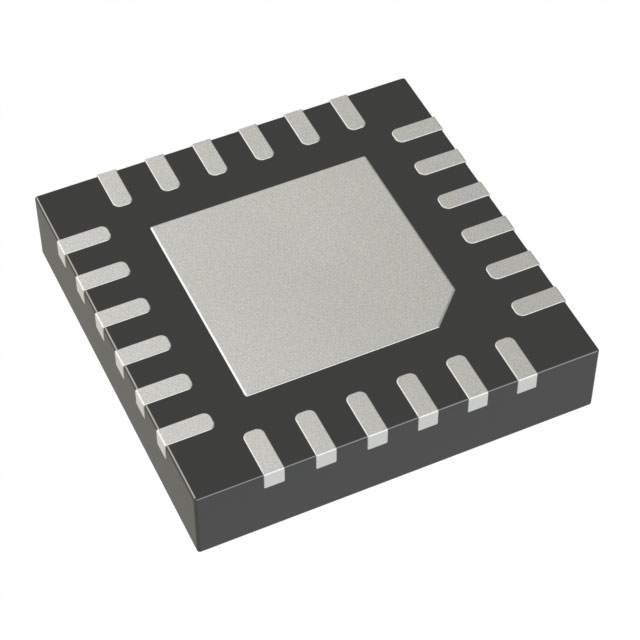

Package / Case		20-WQFN Exposed Pad
Mounting Type		Surface Mount
Frequency		850MHz ~ 1.55GHz
RF Type		iDEN, WiMAX, WLL
Voltage - Supply		4.75V ~ 5.25V
Current - Supply		130mA
Secondary Attributes		Up/Down Converter
Noise Figure		7.8dB
Number of Mixers		1
Supplier Device Package		20-TQFN (5x5)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MAX2051ETP+
Datasheets		General Layout Guidelines for RF and Mixed-Signal PCBs
Datasheets		Maxim Integrated RoHS Cert
Datasheets		Maxim Integrated REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 135

Can ship immediately.
