MAX20053AUD/V+T _ LED Drivers_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	MAX20053AUD/V+T
Manufacturer	Maxim Integrated / Analog Devices
Other Part Numbers	505-MAX20053AUD/V+TTR-ND 175-MAX20053AUD/V+TTR 505-MAX20053AUD/V+TTR 175-MAX20053AUD/V+TTR-ND
Description	IC LED DRVR RGLTR PWM 2A 14TSSOP
Detailed Description	LED Driver IC 1 Output DC DC Regulator Step-Down (Buck) Analog, PWM Dimming 2A 14-TSSOP-EP
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) LED Drivers
Manufacturer		Maxim Integrated / Analog Devices
Series
Packaging		Tape & Reel (TR)
Part Status		Active

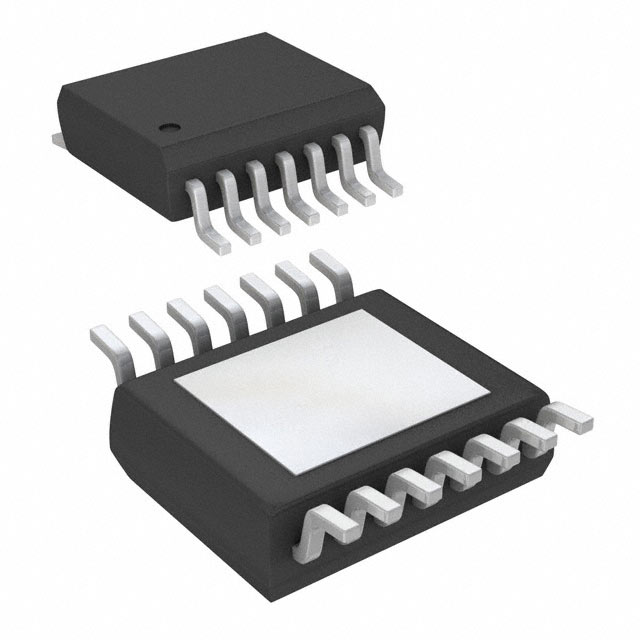

Package / Case		14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Voltage - Output		4.875V ~ 5.125V
Mounting Type		Surface Mount
Number of Outputs		1
Frequency		2.1MHz
Type		DC DC Regulator
Operating Temperature		-40°C ~ 125°C
Applications		Commercial & Industrial Lighting
Current - Output / Channel		2A
Internal Switch(s)		Yes
Topology		Step-Down (Buck)
Supplier Device Package		14-TSSOP-EP
Dimming		Analog, PWM
Voltage - Supply (Min)		4.5V
Voltage - Supply (Max)		65V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
