MAX1912EUB

MAX1912EUB

Part Number	MAX1912EUB
Manufacturer	Maxim Integrated / Analog Devices
Other Part Numbers	2156-MAX1912EUB-ND MAXMAXMAX1912EUB 2156-MAX1912EUB
Description	WHITE LED CHARGE PUMP
Detailed Description	LED Driver IC 1 Output DC DC Regulator Switched Capacitor (Charge Pump) No Dimming 120mA 10-uMAX

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) LED Drivers
Manufacturer		Maxim Integrated / Analog Devices
Series
Packaging		Bulk
Part Status		Active

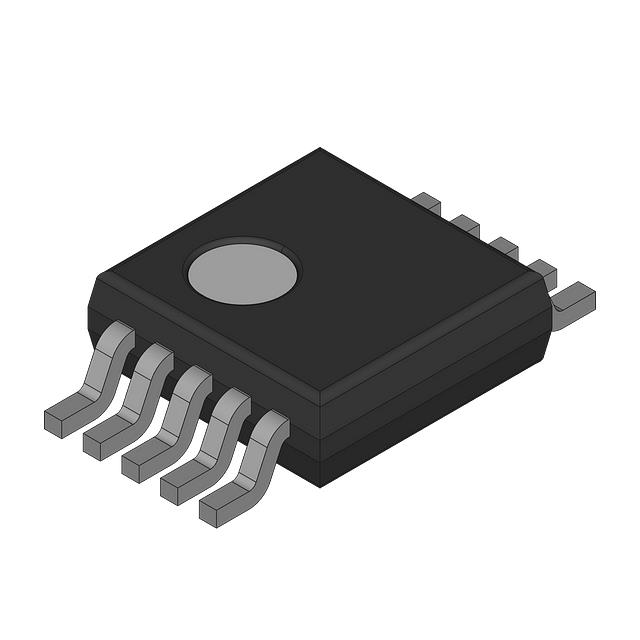

Package / Case		10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Mounting Type		Surface Mount
Number of Outputs		1
Frequency		750kHz
Type		DC DC Regulator
Operating Temperature		-40°C ~ 85°C (TA)
Applications		Backlight
Current - Output / Channel		120mA
Internal Switch(s)		Yes
Topology		Switched Capacitor (Charge Pump)
Supplier Device Package		10-uMAX
Dimming		No
Voltage - Supply (Min)		2.7V
Voltage - Supply (Max)		5.3V

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		RoHS non-compliant
