Part Number |
MAX186BEAP+
|
---|---|
Manufacturer | Maxim Integrated / Analog Devices |
Other Part Numbers |
MAX186BEAP+-ND
|
Description | IC DAS/ADC 12BIT 133K 20SSOP |
Detailed Description | Data Acquisition System (DAS), ADC 12 b 133k MICROWIRE™, QSPI™, Serial, SPI™ 20-SSOP |
Manufacturer Standard Lead Time | 21 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Maxim Integrated / Analog Devices | |
Series | ||
Packaging |
Tube
|
|
Part Status | Active | |

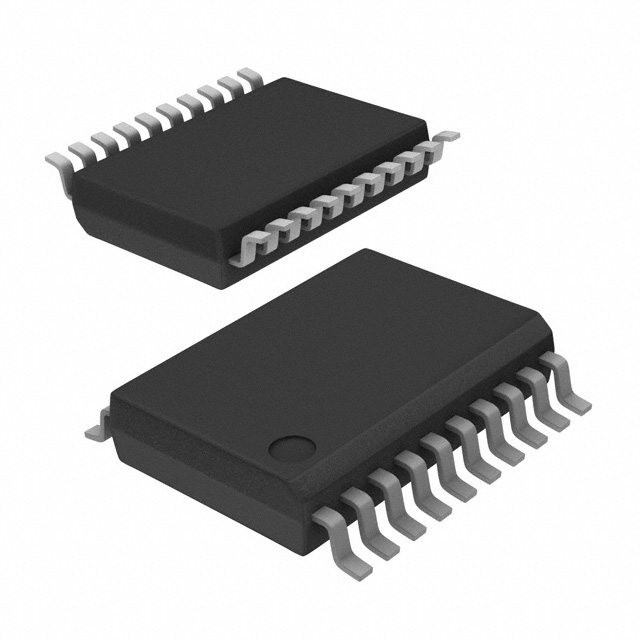

Package / Case | 20-SSOP (0.209", 5.30mm Width) | |
Mounting Type | Surface Mount | |
Type | Data Acquisition System (DAS), ADC | |
Data Interface | MICROWIRE™, QSPI™, Serial, SPI™ | |
Operating Temperature | -40°C ~ 85°C | |
Voltage - Supply | ±5V | |
Sampling Rate (Per Second) | 133k | |
Resolution (Bits) | 12 b | |
Voltage Supply Source | Dual ± | |
Supplier Device Package | 20-SSOP | |
Number of Channels | 8 |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | MAX186BEAP+ | |
Datasheets | 12-Bit ADC Upgrades uC's Internal 8-Bit ADC | |
Datasheets | Understanding Single-Ended, Pseudo-Differential and Fully-Differential ADC Inputs | |
Datasheets | Frequently Asked Questions about Data Converters | |
Datasheets | Maxim Integrated RoHS Cert | |
Datasheets | Maxim Integrated REACH | |
Datasheets | Part Numbering System |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8542.39.0001 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
