MAX1554ETA+T

Part Number
MAX1554ETA+T
Manufacturer Maxim Integrated / Analog Devices
Other Part Numbers
MAX1554ETA+TTR-ND
MAX1554ETA+TCT-ND
MAX1554ETA+TDKR-ND
MAX1554ETA+T-ND
MAX1554ETA+TTR
MAX1554ETA+TDKR
MAX1554ETA+TCT
MAX1554ETAT
Description IC LED DRV RGLTR PWM 970MA 8TDFN
Detailed Description LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) Analog, PWM Dimming 970mA (Switch) 8-TDFN (3x3)
Manufacturer Standard Lead Time 22 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Maxim Integrated / Analog Devices
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active

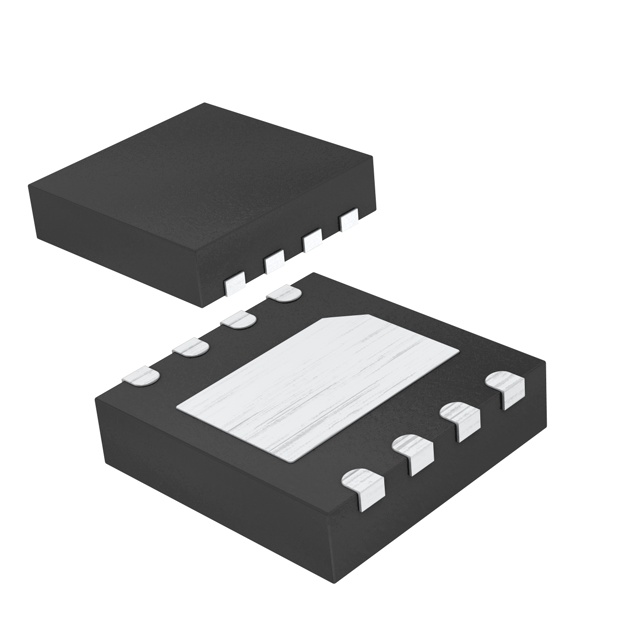

Package / Case 8-WDFN Exposed Pad
Voltage - Output 40V
Mounting Type Surface Mount
Number of Outputs 1
Type DC DC Regulator
Operating Temperature -40°C ~ 85°C (TA)
Applications Backlight
Current - Output / Channel 970mA (Switch)
Internal Switch(s) Yes
Topology Step-Up (Boost)
Supplier Device Package 8-TDFN (3x3)
Dimming Analog, PWM
Voltage - Supply (Min) 3.15V
Voltage - Supply (Max) 5.5V

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 8686

Can ship immediately.
