MAX14930BAWE+ _ Digital Isolators_Isolators

Part Number	MAX14930BAWE+
Manufacturer	Maxim Integrated / Analog Devices
Other Part Numbers	MAX14930BAWE+-ND -4941-MAX14930BAWE+
Description	DGTL ISO 2750VRMS 4CH GP 16SOIC
Detailed Description	General Purpose Digital Isolator 2750Vrms 4 Channel 25Mbps 25kV/µs (Typ) CMTI 16-SOIC (0.295", 7.50mm Width)
Manufacturer Standard Lead Time	32 weeks
Datasheet	Datasheet

Category		Isolators Digital Isolators
Manufacturer		Maxim Integrated / Analog Devices
Series
Packaging		Tube
Part Status		Active

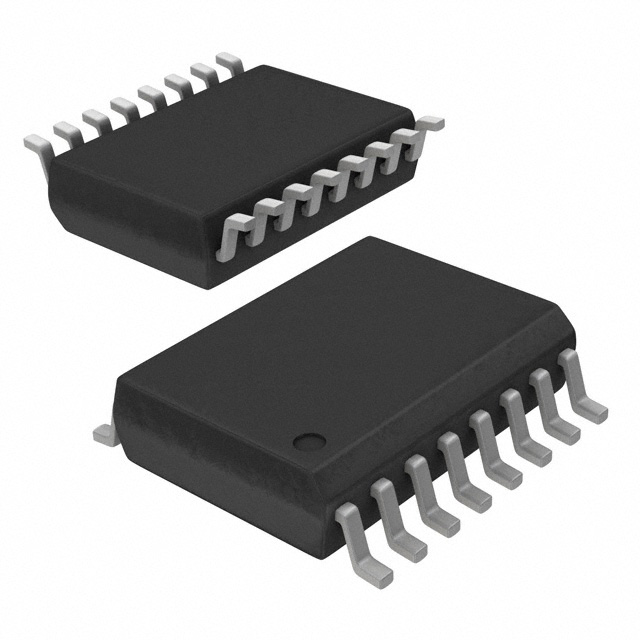

Package / Case		16-SOIC (0.295", 7.50mm Width)
Mounting Type		Surface Mount
Type		General Purpose
Operating Temperature		-40°C ~ 125°C
Voltage - Supply		1.71V ~ 5.5V
Data Rate		25Mbps
Technology		Capacitive Coupling
Voltage - Isolation		2750Vrms
Inputs - Side 1/Side 2		4/0
Supplier Device Package		16-SOIC
Rise / Fall Time (Typ)		2ns, 2ns
Common Mode Transient Immunity (Min)		25kV/µs (Typ)
Propagation Delay tpLH / tpHL (Max)		27.5ns, 28.8ns
Isolated Power		No
Channel Type		Unidirectional
Pulse Width Distortion (Max)		2.6ns
Number of Channels		4

RESOURCE TYPE		LINK
Datasheets		MAX14930BAWE+
Datasheets		RTD Measurement System Design Essentials
Datasheets		Maxim Integrated RoHS Cert
Datasheets		Maxim Integrated REACH

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
