MAX1471ATJ+

MAX1471ATJ+

Part Number	MAX1471ATJ+
Manufacturer	Maxim Integrated / Analog Devices
Other Part Numbers	MAX1471ATJ+-ND -4941-MAX1471ATJ+
Description	RF RX ASK/FSK 315/434MHZ 32TQFN
Detailed Description	- RF Receiver ASK, FSK 315MHz, 434MHz -114dBm PCB, Surface Mount 32-TQFN (5x5)
Manufacturer Standard Lead Time	19 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Receivers
Manufacturer		Maxim Integrated / Analog Devices
Series
Packaging		Tube
Part Status		Active

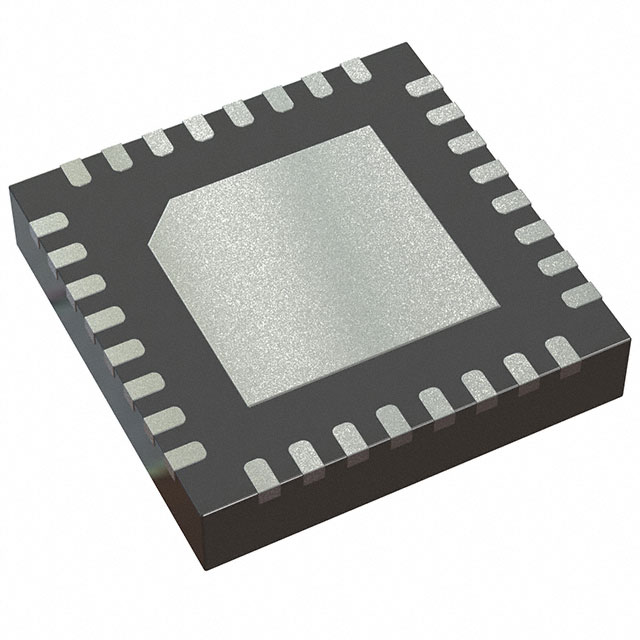

Package / Case		32-WFQFN Exposed Pad
Sensitivity		-114dBm
Mounting Type		Surface Mount
Frequency		315MHz, 434MHz
Modulation or Protocol		ASK, FSK
Data Interface		PCB, Surface Mount
Operating Temperature		-40°C ~ 125°C
Voltage - Supply		3.3V, 5V
Applications		ISM, Garage Door Openers, RKE
Current - Receiving		7mA
Antenna Connector		PCB, Surface Mount
Supplier Device Package		32-TQFN (5x5)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MAX1471ATJ+
Datasheets		Automotive Product Guide
Datasheets		Getting Started with a Radio Design
Datasheets		Squelch in ISM-RF Receivers
Datasheets		Baseband Calculations for ISM-RF Receivers
Datasheets		Crystal Calculations for ISM-RF Products
Datasheets		Maxim Integrated RoHS Cert
Datasheets		Maxim Integrated REACH
Datasheets		Material Declaration MAX1471ATJ+

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 93

Can ship immediately.
