MAX12005ETM+

MAX12005ETM+

Part Number	MAX12005ETM+
Manufacturer	Maxim Integrated / Analog Devices
Other Part Numbers	MAX12005ETM+-ND -4941-MAX12005ETM+
Description	IC RF SWITCH 2.15GHZ 48TQFN
Detailed Description	RF Switch IC DBS, L-Band, IF Satellite 2.15 GHz 75Ohm 48-TQFN (7x7)
Manufacturer Standard Lead Time	42 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Switches
Manufacturer		Maxim Integrated / Analog Devices
Series
Packaging		Tube
Part Status		Active

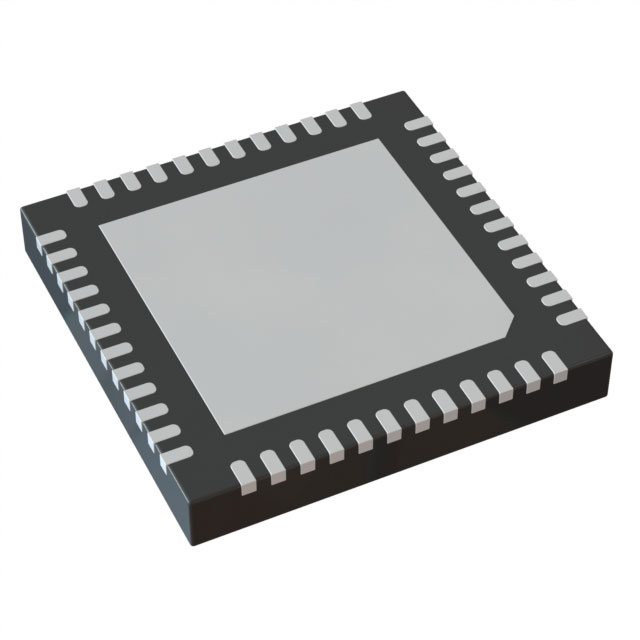

Package / Case		48-WFQFN Exposed Pad
Impedance		75Ohm
Mounting Type		Surface Mount
RF Type		DBS, L-Band, IF Satellite
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		3V ~ 3.5V
Frequency Range		950MHz ~ 2.15GHz
Topology		Reflective
Test Frequency		950MHz
Isolation		55dB
Supplier Device Package		48-TQFN (7x7)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MAX12005ETM+
Datasheets		General Layout Guidelines for RF and Mixed-Signal PCBs
Datasheets		Maxim Integrated RoHS Cert
Datasheets		Maxim Integrated REACH
Datasheets		Material Declaration MAX12005ETM+

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 47

Can ship immediately.
