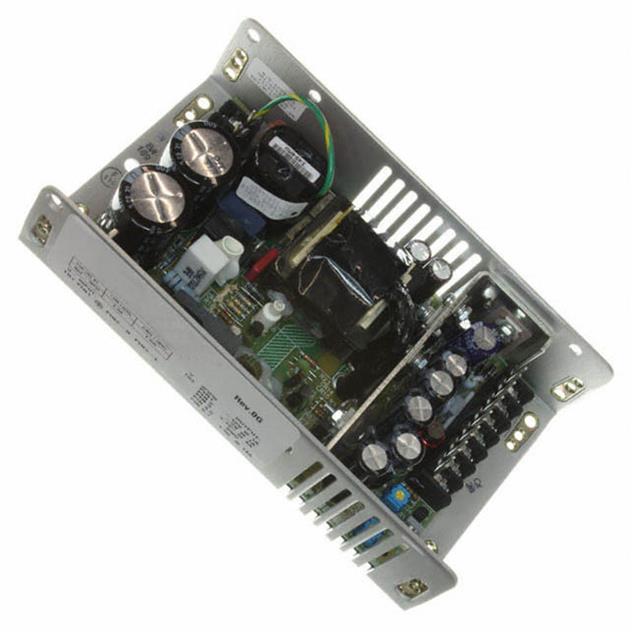

MAP80-4003G _ AC DC Converters_Power Supplies - External/Internal (Off-Board)

Part Number	MAP80-4003G
Manufacturer	Power-One (Bel Power Solutions)
Other Part Numbers	MAP80-4003G-ND
Description	AC/DC CNVRTR 5V 15V -5V -15V 80W
Detailed Description	Open Frame AC DC Converters 4 Output 5V 15V -5V -15V 90 ~ 264 VAC Input
Manufacturer Standard Lead Time	35 weeks

Category		Power Supplies - External/Internal (Off-Board) AC DC Converters
Manufacturer		Power-One (Bel Power Solutions)
Series		MAP80 (80W)
Packaging		Bulk
Part Status		Active
Power (Watts)		80W
Features		Adjustable Output, Universal Input
Size / Dimension		7.20" L x 4.20" W x 1.80" H (182.9mm x 106.7mm x 45.7mm)
Mounting Type		Chassis Mount
Voltage - Input		90 ~ 264 VAC
Type		Open Frame
Operating Temperature		0°C ~ 70°C (With Derating)
Applications		ITE (Commercial)
Approval Agency		CE
Efficiency		80%
Voltage - Output 1		5V
Voltage - Output 2		15V
Voltage - Output 3		-5V
Voltage - Output 4		-15V
Minimum Load Required		Yes
Number of Outputs		4
Voltage - Isolation		2.6 kV
Current - Output 1		14 A
Current - Output 2		4 A
Current - Output 3		1 A
Current - Output 4		1 A

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.7007
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
