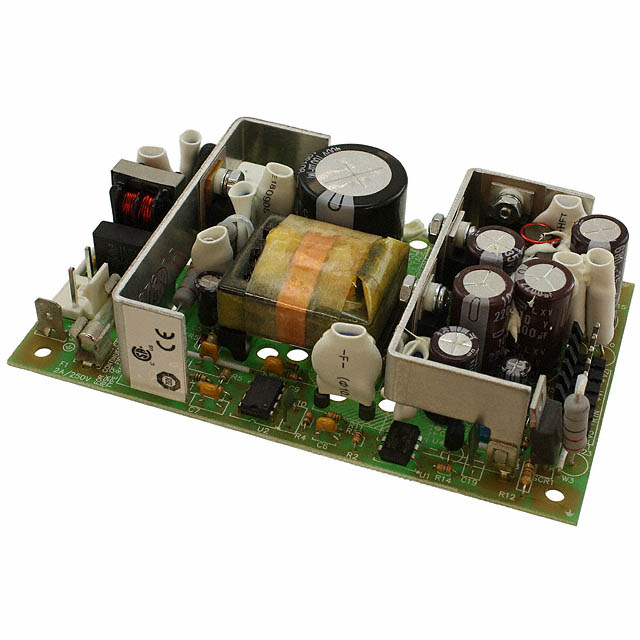

MAP40-3500G _ AC DC Converters_Power Supplies - External/Internal (Off-Board)

Part Number	MAP40-3500G
Manufacturer	Power-One (Bel Power Solutions)
Other Part Numbers	MAP40-3500G-ND
Description	AC/DC CONVERTER 5V +/-12V 40W
Detailed Description	Open Frame AC DC Converters 3 Output 5V 12V -12V 90 ~ 264 VAC Input
Manufacturer Standard Lead Time	35 weeks
Datasheet	Datasheet

Category		Power Supplies - External/Internal (Off-Board) AC DC Converters
Manufacturer		Power-One (Bel Power Solutions)
Series		MAP40 (40W)
Packaging		Bulk
Part Status		Active
Power (Watts)		40W
Features		Adjustable Output, Remote Sense, Universal Input
Size / Dimension		5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm)
Mounting Type		Chassis Mount
Voltage - Input		90 ~ 264 VAC
Type		Open Frame
Operating Temperature		0°C ~ 70°C (With Derating)
Applications		ITE (Commercial)
Approval Agency		CE
Efficiency		70%
Voltage - Output 1		5V
Voltage - Output 2		12V
Voltage - Output 3		-12V
Number of Outputs		3
Voltage - Isolation		2.6 kV
Current - Output 1		5 A
Current - Output 2		1 A
Current - Output 3		300 mA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.7001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
