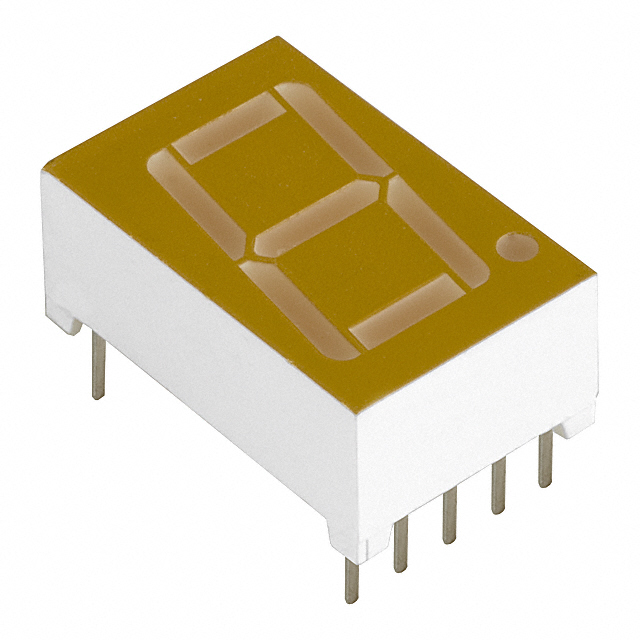

MAN6680

MAN6680

Part Number	MAN6680
Manufacturer	Sanyo Semiconductor/onsemi
Other Part Numbers	MAN6680-ND MAN6680-NDR
Description	DISPLAY 7SEG 0.56" SGL ORG 10DIP
Detailed Description	Display Modules - LED Character and Numeric Orange 7-Segment 1 Character Common Cathode 2.5V (Max) 20mA 0.750" H x 0.480" W x 0.315" D (19.05mm x 12.20mm x 8.00mm) 10-DIP (0.600", 15.24mm)
Datasheet	Datasheet

Product Attributes

Category		Optoelectronics LED Character and Numeric
Manufacturer		Sanyo Semiconductor/onsemi
Series
Packaging		Bulk
Part Status		Obsolete
Package / Case		10-DIP (0.600", 15.24mm)
Color		Orange
Display Type		7-Segment
Size / Dimension		0.750" H x 0.480" W x 0.315" D (19.05mm x 12.20mm x 8.00mm)
Number of Characters		1
Millicandela Rating		2.2mcd
Common Pin		Common Cathode
Digit/Alpha Size		0.56" (14.22mm)
Voltage - Forward (Vf) (Typ)		2.5V (Max)
Current - Test		20mA
Wavelength - Peak		630nm
Power Dissipation (Max)		600mW

Documents & Media

RESOURCE TYPE		LINK
Datasheets		onsemi RoHS

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.41.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected

Obsolete

This product is no longer manufactured.
