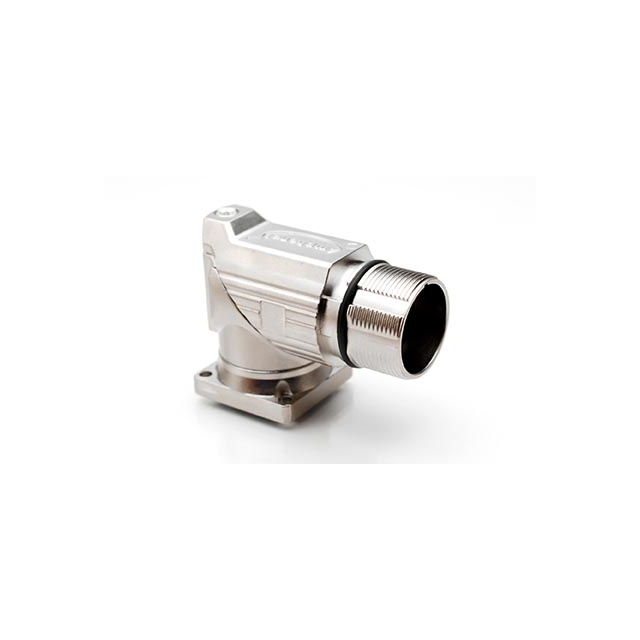

MA7RAP1702

Part Number
MA7RAP1702
Manufacturer Tuchel / Amphenol
Other Part Numbers
889-MA7RAP1702-ND
889-MA7RAP1702
Description 17 POSITION 90 ROTATABLE RECEPTA
Detailed Description 17 Position Circular Connector Receptacle Housing Panel Mount, Right Angle Backshell, Rotatable
Manufacturer Standard Lead Time 16 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Tuchel / Amphenol
Series
MotionGrade™ M23 Signal Standard Series, Checkmate™ Quick Locking
Packaging
Box
Part Status Active
Features Backshell, Rotatable
Connector Type Receptacle Housing
Mounting Type Panel Mount, Right Angle
Shielding Shielded
Number of Positions 17
Type For Female Sockets or Male Pins
Orientation P
Shell Size - Insert M23-17
Operating Temperature -20°C ~ 130°C
Contact Type Crimp
Fastening Type Push-Twist
Ingress Protection IP67 - Dust Tight, Waterproof
Contact Size 1.0mm
Material Flammability Rating UL94 V-0
Mounting Feature Flange
Note Contacts Not Included
Housing Color Silver
Contact Shape Circular
Shell Material Zinc Die Cast
Shell Finish Nickel
Insert Material Polyamide (PA66), Nylon 6/6

Documents & Media

RESOURCE TYPE LINK
Datasheets MA7RAP1702
Datasheets MotionGrade
Datasheets Connector Solutions M23 Elite Series

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8538.90.8180
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
