M80-8871001 _ Headers, Receptacles, Female Sockets_Rectangular Connectors_Connectors, Interconnects

Part Number	M80-8871001
Manufacturer	Harwin
Other Part Numbers	952-2977-ND M80-8871001-ND 3937-M80-8871001 952-2977

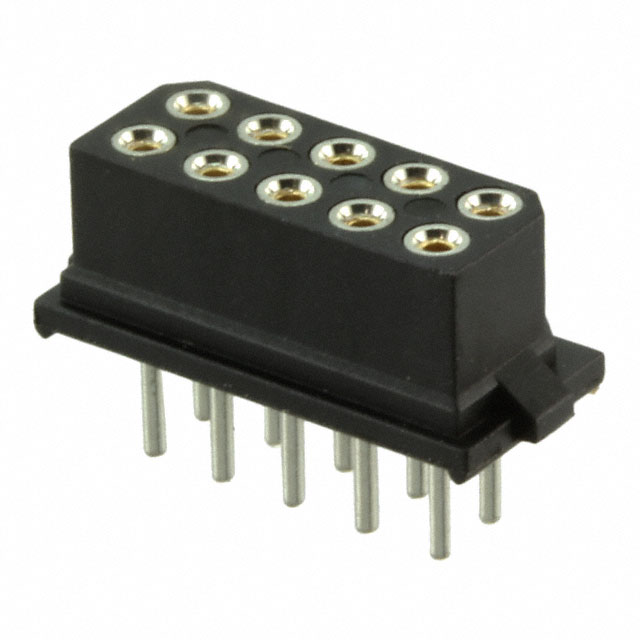

Description	CONN RCPT 10POS 0.079 GOLD PCB
Detailed Description	10 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
Manufacturer Standard Lead Time	10 weeks

Category		Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Manufacturer		Harwin
Series		Datamate L-Tek
Packaging		Tube
Part Status		Active
Connector Type		Receptacle
Voltage Rating		800V
Mounting Type		Through Hole
Number of Positions		10
Style		Board to Board or Cable
Operating Temperature		-55°C ~ 125°C
Applications		Automotive, General Purpose, Military
Contact Type		Female Socket
Fastening Type		Locking Ramp
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Beryllium Copper
Mated Stacking Heights		7.23mm, 7.85mm
Insulation Color		Black
Pitch - Mating		0.079" (2.00mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		12.0µin (0.30µm)
Contact Finish - Post		Tin-Lead
Contact Finish Thickness - Post		137.8µin (3.50µm)
Contact Shape		Circular
Contact Length - Post		0.118" (3.00mm)
Insulation Height		0.202" (5.14mm)
Insulation Material		Polyester, Glass Filled
Row Spacing - Mating		0.079" (2.00mm)
Number of Rows		2

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant
