Part Number	M80-8542042
Manufacturer	Harwin
Other Part Numbers	952-1091-5-ND 952-1091-5 M808542042 3937-M80-8542042

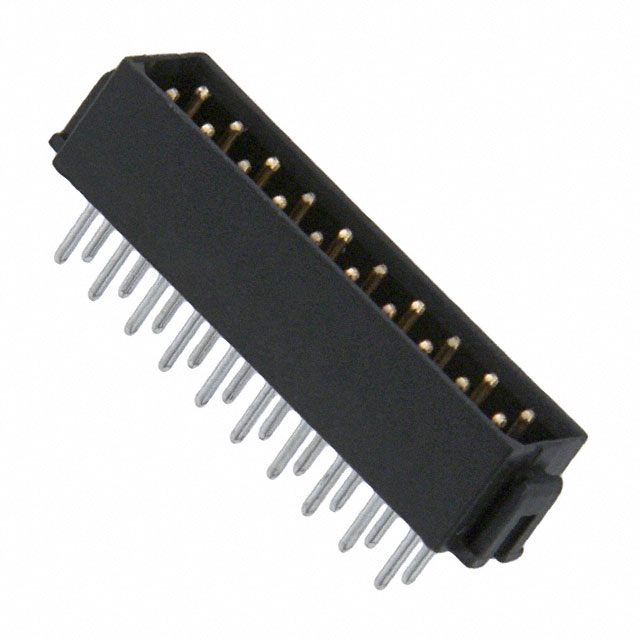

Description	CONN HEADER VERT 20POS 2MM
Detailed Description	Connector Header Through Hole 20 position 0.079" (2.00mm)
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Harwin
Series		Datamate L-Tek
Packaging		Tube
Part Status		Active
Connector Type		Header
Voltage Rating		800V
Current Rating (Amps)		2.2A
Mounting Type		Through Hole
Number of Positions		20
Number of Rows		2
Style		Board to Board or Cable
Operating Temperature		-55°C ~ 125°C
Contact Type		Male Pin
Fastening Type		Latch Holder
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Phosphor Bronze
Mated Stacking Heights		7.23mm, 7.85mm, 10.2mm, 13.51mm
Insulation Color		Black
Pitch - Mating		0.079" (2.00mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		29.5µin (0.75µm)
Contact Finish - Post		Tin
Contact Finish Thickness - Post		118.1µin (3.00µm)
Contact Shape		Circular
Contact Length - Post		0.118" (3.00mm)
Insulation Height		0.219" (5.56mm)
Shrouding		Shrouded - 4 Wall
Insulation Material		Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating		0.079" (2.00mm)

RESOURCE TYPE		LINK
Datasheets		M80-8542042
Datasheets		M80, M83 Series Spec Sheet
Datasheets		M80-001
Datasheets		M80-0110001
Datasheets		M80-8540442
Datasheets		Harwin REACH
Datasheets		RoHS Cert M80-8542042
Datasheets		M80 - material chg 03/FEB/2021
Datasheets		DATABOS Series
Datasheets		Dual Vertical Header Male Pins

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
