M80-6912698

Part Number
M80-6912698
Manufacturer Harwin
Other Part Numbers
952-1616-ND
952-1616
M806912698

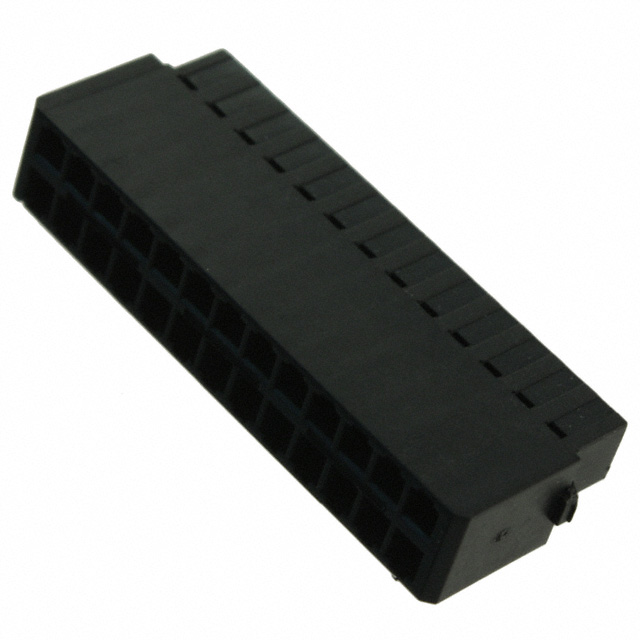

Description CONN RCPT HSG 26POS 2.00MM
Detailed Description 26 Rectangular Connectors - Housings Receptacle Black 0.079" (2.00mm)
Datasheet Datasheet

Product Attributes

Category
Manufacturer Harwin
Series
Datamate Trio-Tek
Packaging
Bulk
Part Status Obsolete
Connector Type Receptacle
Contact Termination Crimp
Color Black
Mounting Type Free Hanging (In-Line)
Number of Positions 26
Pitch 0.079" (2.00mm)
Operating Temperature -55°C ~ 125°C
Contact Type Female Socket
Fastening Type Latch Lock
Row Spacing 0.079" (2.00mm)
Note Contacts Not Included
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Number of Rows 2

Documents & Media

RESOURCE TYPE LINK
Datasheets M80-6912698
Datasheets Harwin REACH
Datasheets RoHS Cert M80-6912698
Datasheets M80 - End of Life 17/NOV/2021

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.69.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
