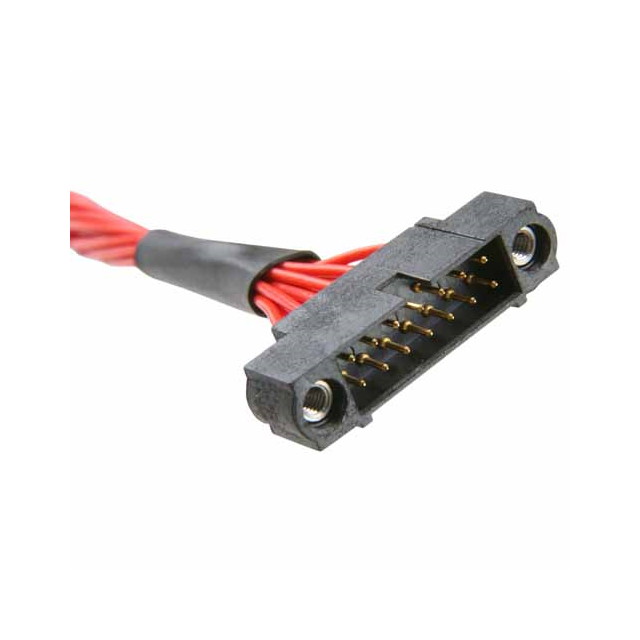

M80-5614205

M80-5614205

Part Number	M80-5614205
Manufacturer	Harwin
Other Part Numbers	M80-5614205-ND 3937-M80-5614205 Q6637534
Description	CONN HEADER 42POS CRIMP 24-28AWG
Detailed Description	42 Position Rectangular Header Connector Crimp Gold 24-28 AWG
Manufacturer Standard Lead Time	17 weeks

Product Attributes

Category		Connectors, Interconnects Rectangular Connectors Free Hanging, Panel Mount
Manufacturer		Harwin
Series		Datamate J-Tek
Packaging		Bulk
Part Status		Active
Features		Jackscrews
Connector Type		Header
Contact Finish		Gold
Color		Black
Mounting Type		Free Hanging (In-Line)
Wire Gauge		24-28 AWG
Number of Positions		42
Pitch		0.079" (2.00mm)
Contact Type		Male Pin
Row Spacing		0.079" (2.00mm)
Contact Finish Thickness		10.0µin (0.25µm)
Wire Type		Discrete
Cable Termination		Crimp
Number of Rows		2

Documents & Media

RESOURCE TYPE		LINK
Datasheets		M80-5614205
Datasheets		M80, M83 Series Spec Sheet
Datasheets		M80-001
Datasheets		M80-0110001
Datasheets		M80-5610405
Datasheets		Harwin REACH
Datasheets		RoHS Cert M80-5614205

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 5

Can ship immediately.
