M80-5305042 _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	M80-5305042
Manufacturer	Harwin
Other Part Numbers	952-1023-5-ND M805305042 3937-M80-5305042 952-1023-5

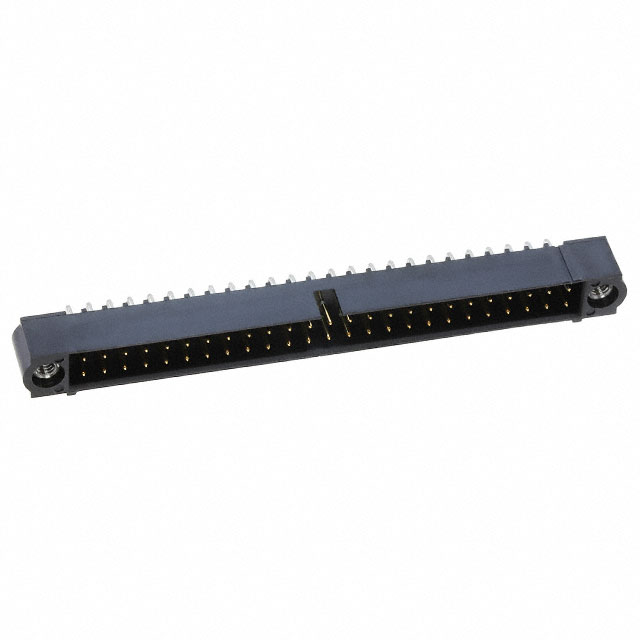

Description	CONN HEADER R/A 50POS 2MM
Detailed Description	Connector Header Through Hole, Right Angle 50 position 0.079" (2.00mm)
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Harwin
Series		Datamate J-Tek
Packaging		Tube
Part Status		Active
Features		Keying Slot, Mating Flange
Connector Type		Header
Voltage Rating		800V
Current Rating (Amps)		2.2A
Mounting Type		Through Hole, Right Angle
Number of Positions		50
Number of Rows		2
Style		Board to Board or Cable
Operating Temperature		-55°C ~ 125°C
Contact Type		Male Pin
Fastening Type		Threaded
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Phosphor Bronze
Insulation Color		Black
Pitch - Mating		0.079" (2.00mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		29.5µin (0.75µm)
Contact Finish - Post		Tin
Contact Finish Thickness - Post		118.1µin (3.00µm)
Contact Shape		Circular
Contact Length - Post		0.118" (3.00mm)
Insulation Height		0.218" (5.55mm)
Shrouding		Shrouded - 4 Wall
Insulation Material		Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating		0.079" (2.00mm)

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
