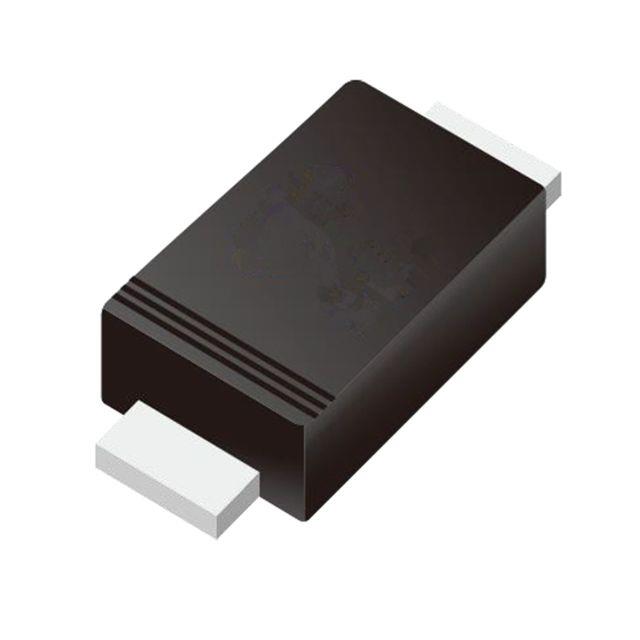

M7

Part Number
M7
Manufacturer EVVO Semi
Other Part Numbers
5272-M7TR-ND
5272-M7CT-ND
5272-M7DKR-ND
5272-M7TR
5272-M7DKR
5272-M7CT
Description DIODE GEN PURP 1KV 1A SMAF
Detailed Description Diode 1000 V 1A Surface Mount SMAF
Manufacturer Standard Lead Time 7 days
Datasheet Datasheet

Product Attributes

Category
Manufacturer EVVO Semi
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Package / Case DO-221AC, SMA Flat Leads
Mounting Type Surface Mount
Speed Standard Recovery >500ns, > 200mA (Io)
Technology Standard
Capacitance @ Vr, F 15pF @ 4V, 1MHz
Current - Average Rectified (Io) 1A
Supplier Device Package SMAF
Operating Temperature - Junction -55°C ~ 150°C
Voltage - DC Reverse (Vr) (Max) 1000 V
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1 A
Current - Reverse Leakage @ Vr 5 µA @ 1 kV

Documents & Media

RESOURCE TYPE LINK
Datasheets M7

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 3768

Can ship immediately.
PACKAGING QUANTITY UNIT PRICE EXT PRICE
{{ p.name }} {{ numberFormat(p.buyQty) }} {{ priceFormat(p.unitPrice) }} {{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY UNIT PRICE EXT PRICE
{{ numberFormat(price.break_quantity) }} {{ priceFormat(price.unit_price) }} {{ priceFormat(price.break_quantity * price.unit_price) }}
Detailed pricing is currently unavailable.
Detailed packaging information is temporarily unavailable.
