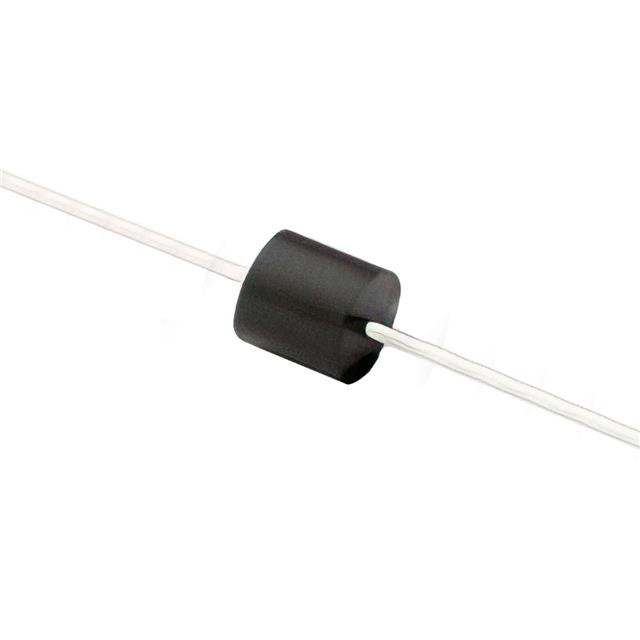

M5KP14A

Part Number
M5KP14A
Manufacturer MDE Semiconductor Inc.
Other Part Numbers
3811-M5KP14A-ND
3811-M5KP14A
Description TVS DIODE UP 14VRWM 23.2VC
Detailed Description 23.2V Clamp 216A Ipp Tvs Diode Through Hole P600
Datasheet Datasheet

Product Attributes

Category
Manufacturer MDE Semiconductor Inc.
Series
M5KP
Packaging
Bulk
Part Status Active
Package / Case P600, Axial
Mounting Type Through Hole
Type Zener
Operating Temperature -55°C ~ 175°C (TJ)
Applications General Purpose
Current - Peak Pulse (10/1000µs) 216A
Voltage - Reverse Standoff (Typ) 14V
Supplier Device Package P600
Unidirectional Channels 1
Voltage - Breakdown (Min) 15.6V
Voltage - Clamping (Max) @ Ipp 23.2V
Power - Peak Pulse 5000W (5kW)
Power Line Protection No

Documents & Media

RESOURCE TYPE LINK
Datasheets M5KP14A

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH info available upon request
RoHS Status ROHS3 Compliant
