M55-8001242-0300A

M55-8001242-0300A

Part Number	M55-8001242-0300A
Manufacturer	Harwin
Other Part Numbers	952-M55-8001242-0300A-ND 952-M55-8001242-0300A 3937-M55-8001242-0300A

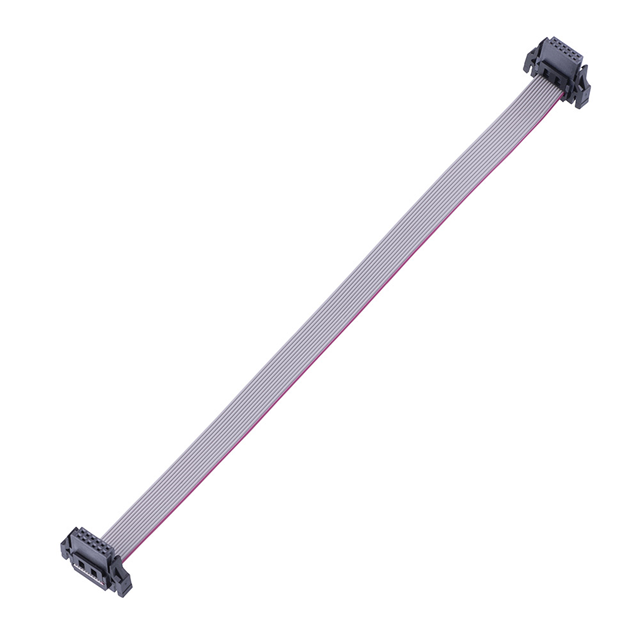

Description	CBL ASSEM 1.27MM 12POS F-F 300MM
Detailed Description	12 Position Cable Assembly Rectangular Socket to Socket 0.984' (300.00mm, 11.81")
Manufacturer Standard Lead Time	17 weeks
Datasheet	Datasheet

Product Attributes

Category		Cable Assemblies Rectangular Cable Assemblies
Manufacturer		Harwin
Series
Packaging		Bulk
Part Status		Active
Features		Latch Lock, Polarizing Key
Connector Type		Socket to Socket
Contact Finish		Gold
Color		Gray, Ribbon
Length		0.984' (300.00mm, 11.81")
Shielding		Unshielded
Number of Positions		12
Number of Rows		2
Cable Termination		IDC
Pitch - Cable		0.025" (0.64mm)
Pitch - Connector		0.050" (1.27mm)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		M55-8001242-0300A
Datasheets		M55-6001242R
Datasheets		M55-6001242R
Datasheets		M55-8001242-0150A
Datasheets		Harwin REACH
Datasheets		M55 Series Spec Sheet

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8544.42.9090
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 40

Can ship immediately.
