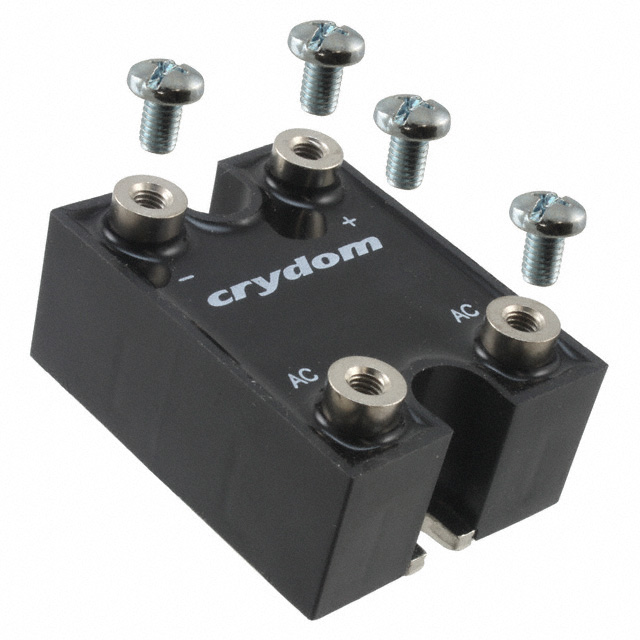

M5060SB1000

Part Number
M5060SB1000
Manufacturer Sensata Technologies – Crydom
Other Part Numbers
CC2070-ND
2266-M5060SB1000
M5060SB1000-ND
CC2070
Description BRIDGE RECT 1P 1KV 60A MODULE
Detailed Description Bridge Rectifier Single Phase Standard 1 kV Chassis Mount Module
Manufacturer Standard Lead Time 24 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Sensata Technologies – Crydom
Series
Packaging
Bulk
Part Status Active
Package / Case Module
Mounting Type Chassis Mount
Diode Type Single Phase
Operating Temperature -40°C ~ 125°C (TJ)
Technology Standard
Supplier Device Package Module
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 60 A
Voltage - Forward (Vf) (Max) @ If 1.35 V @ 50 A

Documents & Media

RESOURCE TYPE LINK
Datasheets M5060SB1000
Datasheets CE Declaration of Conformity

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
California Prop 65 California Prop 65 Information
ECCN EAR99
HTSUS 8541.10.0080
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Affected
RoHS Status ROHS3 Compliant

In Stock: 2

Can ship immediately.
