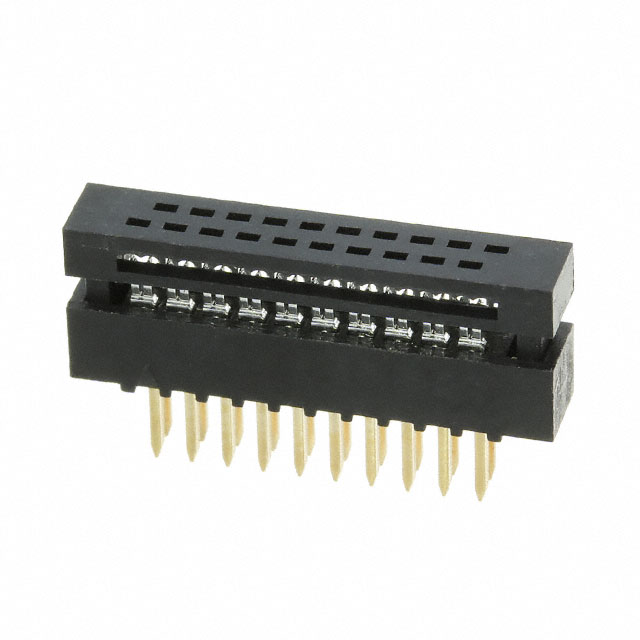

M50-3801042

M50-3801042

Part Number	M50-3801042
Manufacturer	Harwin
Other Part Numbers	952-2653-ND 952-2653 M50-3801042-ND 3937-M50-3801042
Description	CONN DIP HDR IDC 20P 30AWG VERT
Detailed Description	20 Position Ribbon Cable, DIP Header Connector IDC 30 AWG Through Hole
Manufacturer Standard Lead Time	15 weeks

Product Attributes

Category		Connectors, Interconnects Rectangular Connectors Board In, Direct Wire to Board
Manufacturer		Harwin
Series		Archer M50
Packaging		Tube
Part Status		Active
Features		Feed Through
Connector Type		Ribbon Cable, DIP Header
Contact Finish		Gold
Mounting Type		Through Hole
Wire Gauge		30 AWG
Number of Positions		20
Row Spacing		0.050" (1.27mm)
Cable Termination		IDC
Cable Pitch		0.025" (0.64mm)
Board-Side Pitch		0.050" (1.27mm)
Number of Rows		2

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 554

Can ship immediately.
